Overview - Steering Column

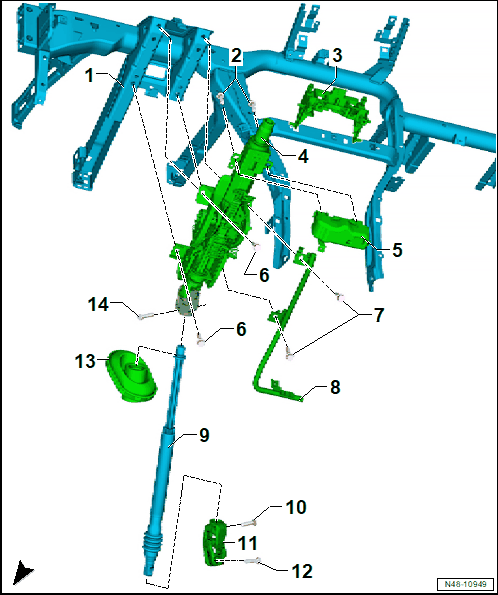

Fig 1: Exploded View Of Steering Column, LHD Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Panel Crossmember
- Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
- Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
Shear bolt
- Quantity: 2
Instrument Cluster Bracket
Steering Column
- Refer to Steering Column, Removing and Installing .
Electronic Steering Column Lock Control Module -J764-
- Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- M 8 x 28
- 20 Nm
Bolt
- Quantity: 2
- M 8 x 32
- 20 Nm
Crash Bolster
- Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
Steering Intermediate Shaft
- Refer to Steering Intermediate Shaft, Removing and Installing .
Bolt
- Always replace after removing
- M8 x 35
- 20 Nm +90°
Universal Joint
Bolt
- Always replace after removing
- M8 x 35
- 20 Nm +90°
Seal
Bolt
- Always replace after removing
- M8 x 35
- 20 Nm +90°
