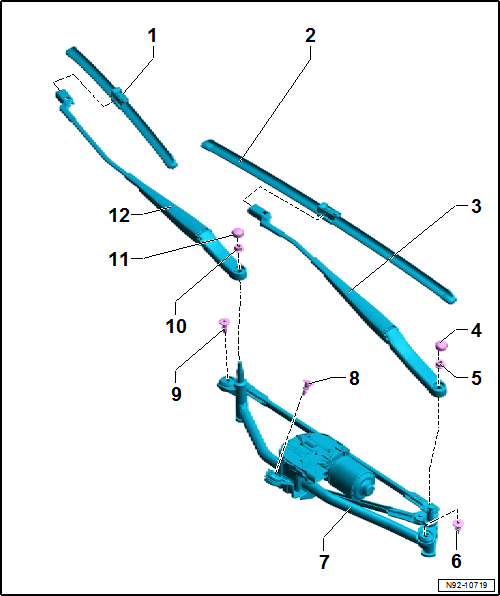

Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Wiper Blade
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 20 Nm
- Bolt
- Tightening specifications and sequence. Refer to Fig 2
- Windshield Wiper Frame
- With Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and Installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Bolt
- Tightening specifications and sequence. Refer to Fig 2
- Bolt
- Tightening specifications and sequence. Refer to Fig 2.
- Nut
- 20 Nm
- Cap
- Front Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .

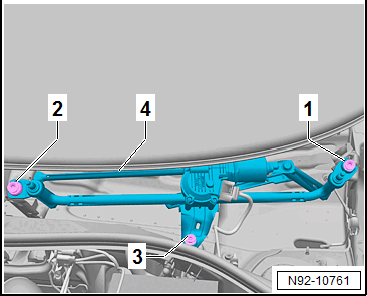

Windshield Wiper Frame - Tightening Specifications and Sequence
-- Tighten the bolts for the windshield wiper frame -4- in stages and also in the shown tightening sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1, 2 and 3- | Install all the way by hand |
| 2. | -1, 2 and 3- | 8 Nm |
