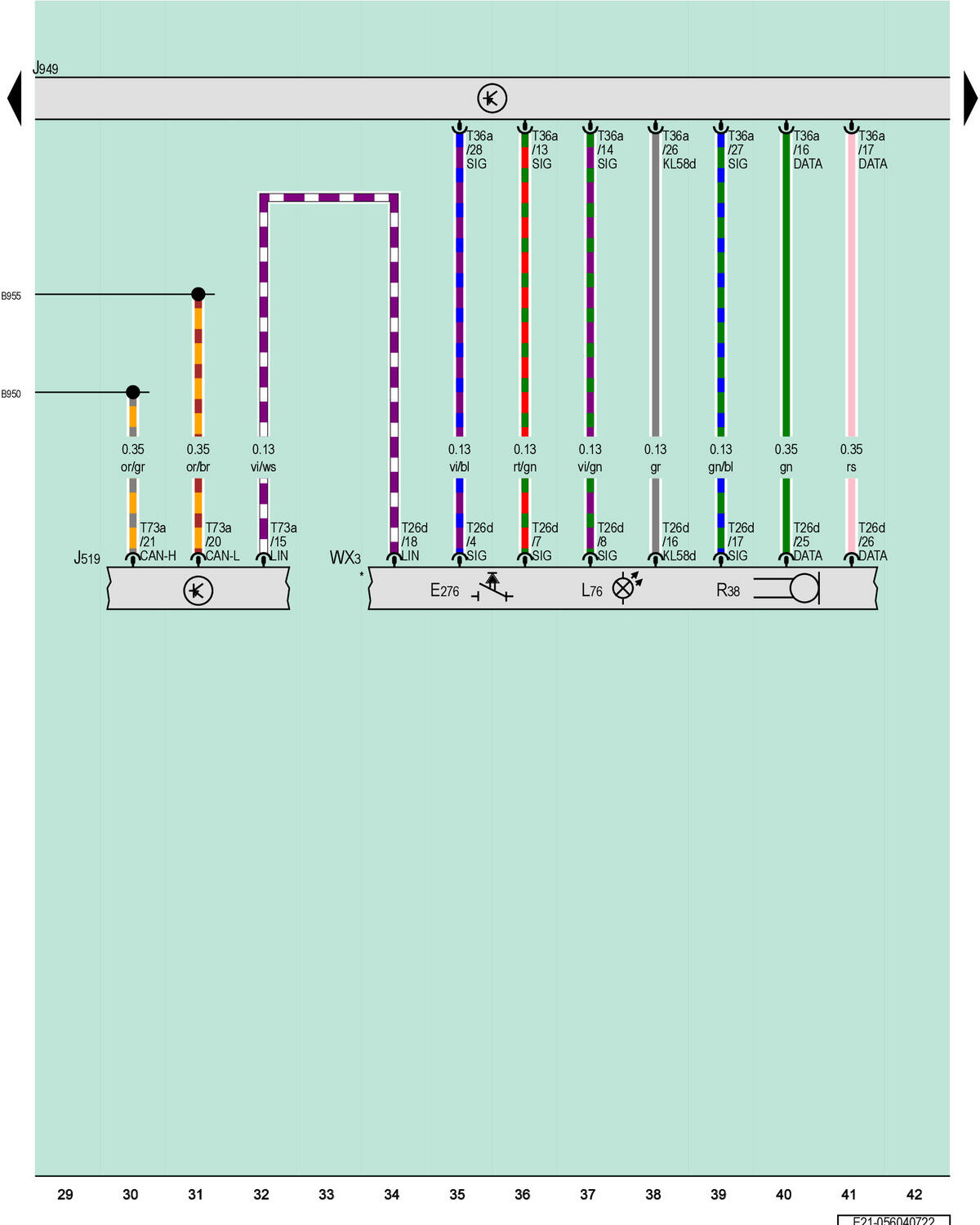

Vehicle Electrical System Control Module, Control Module For Emergency Call Module And Communication Unit, Front Roof Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E276

Emergency Call Button

J519

Vehicle Electrical System Control Module

J949

Control Module for Emergency Call Module and Communication Unit

L76

Push Button Illumination Bulb

R38

Telephone Microphone

T26d

26-Pin Connector, Black

T36a

36-Pin Connector, Black

T73a

73-Pin Connector, Black

WX3

Front Roof Module

B950

Connection 1 (CAN Bus Connectivity High) in Main Wiring Harness

B955

Connection 1 (CAN Bus Connectivity Low) in Main Wiring Harness

*

Refer to Applicable Wiring Diagram for Interior Lamps
