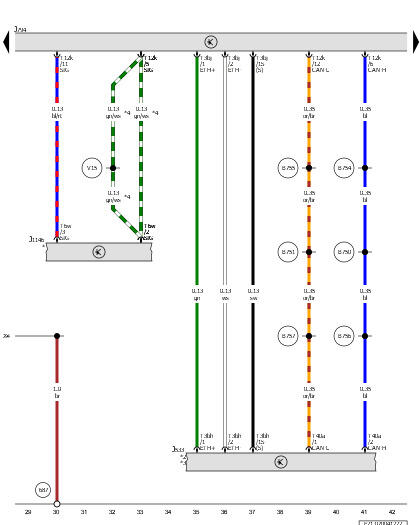

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Mobile Device Charger 1
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J1146
Mobile Device Charger 1
T3bh
3-Pin Connector, Black
T3bj
3-Pin Connector, Black
T6w
6-Pin Connector, Black
T12k
12-Pin Connector, Gray
T40a
40-Pin Connector, Black
294
Ground Connection 9 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
B750
CAN Bus High Display and Control Connection 1
B751
CAN Bus Low Display and Control Connection 1
B754
CAN Bus High Display and Control Connection 3
B755
CAN Bus Low Display and Control Connection 3
B756
CAN Bus High Display and Control Connection 4
B757
CAN Bus Low Display and Control Connection 4
V15
Connection (in Telephone Wiring Harness)
*
Refer to the Applicable Cell Phone System Wiring Diagram
*2
Refer to the Applicable Driver Information System CAN Bus Network Data Bus Wiring Diagram
*3
Refer to the Applicable Ethernet Network Data Bus Wiring Diagram
*4
Depending on Equipment
