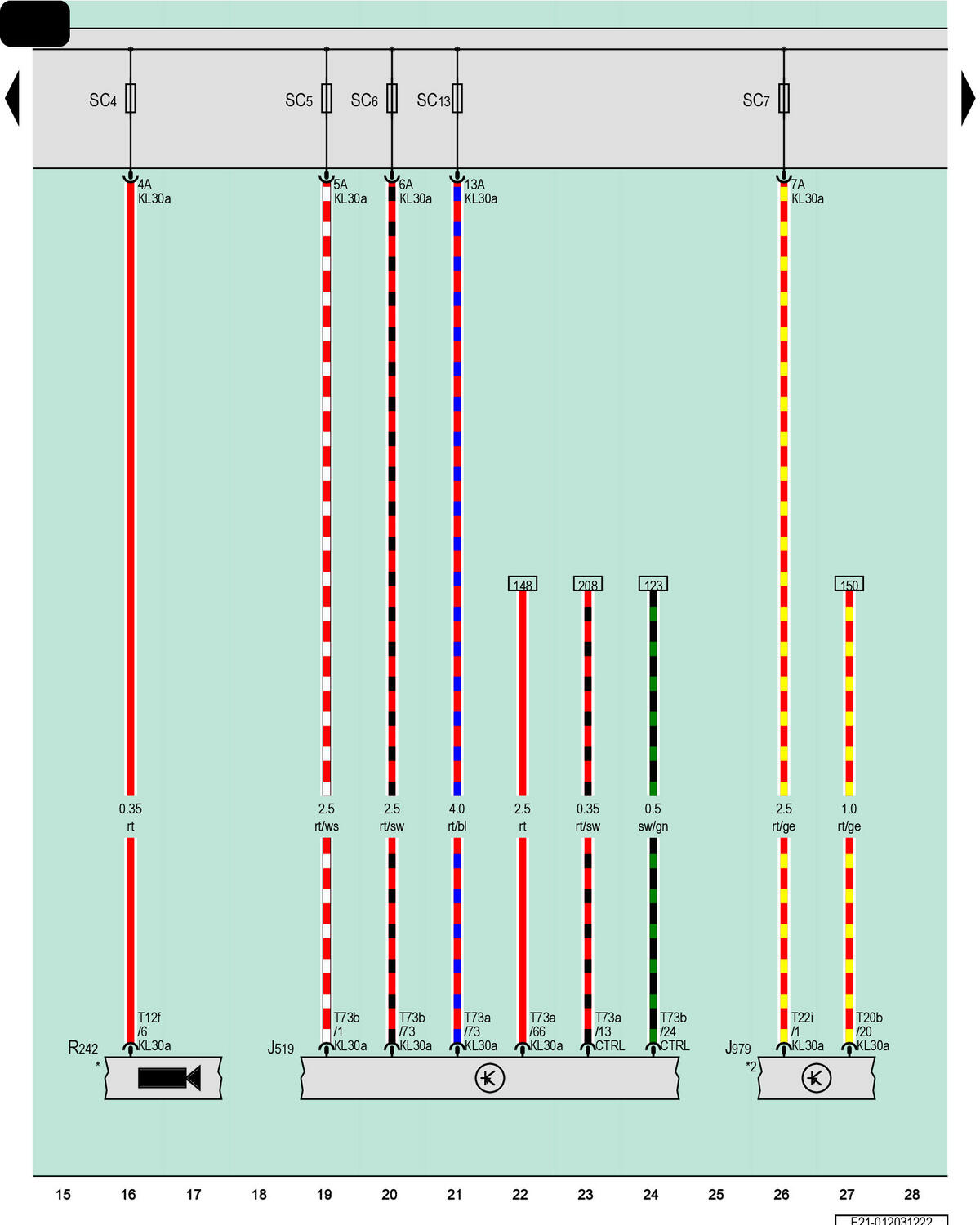

Vehicle Electrical System Control Module, Heating And Air Conditioning Control Module, Driver Assistance Systems Front Camera, Fuse Panel C

GWWE21-012031222Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

J979

Heating and Air Conditioning Control Module

R242

Driver Assistance Systems Front Camera

SC

Fuse Panel C

SC4

Fuse 4 (On Fuse Panel C)

SC5

Fuse 5 (On Fuse Panel C)

SC6

Fuse 6 (On Fuse Panel C)

SC7

Fuse 7 (On Fuse Panel C)

SC13

Fuse 13 (On Fuse Panel C)

T12f

12-Pin Connector, Black

T20b

20-Pin Connector, Black

T22i

22-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram

*2

Refer to Applicable A/C System Wiring Diagram
