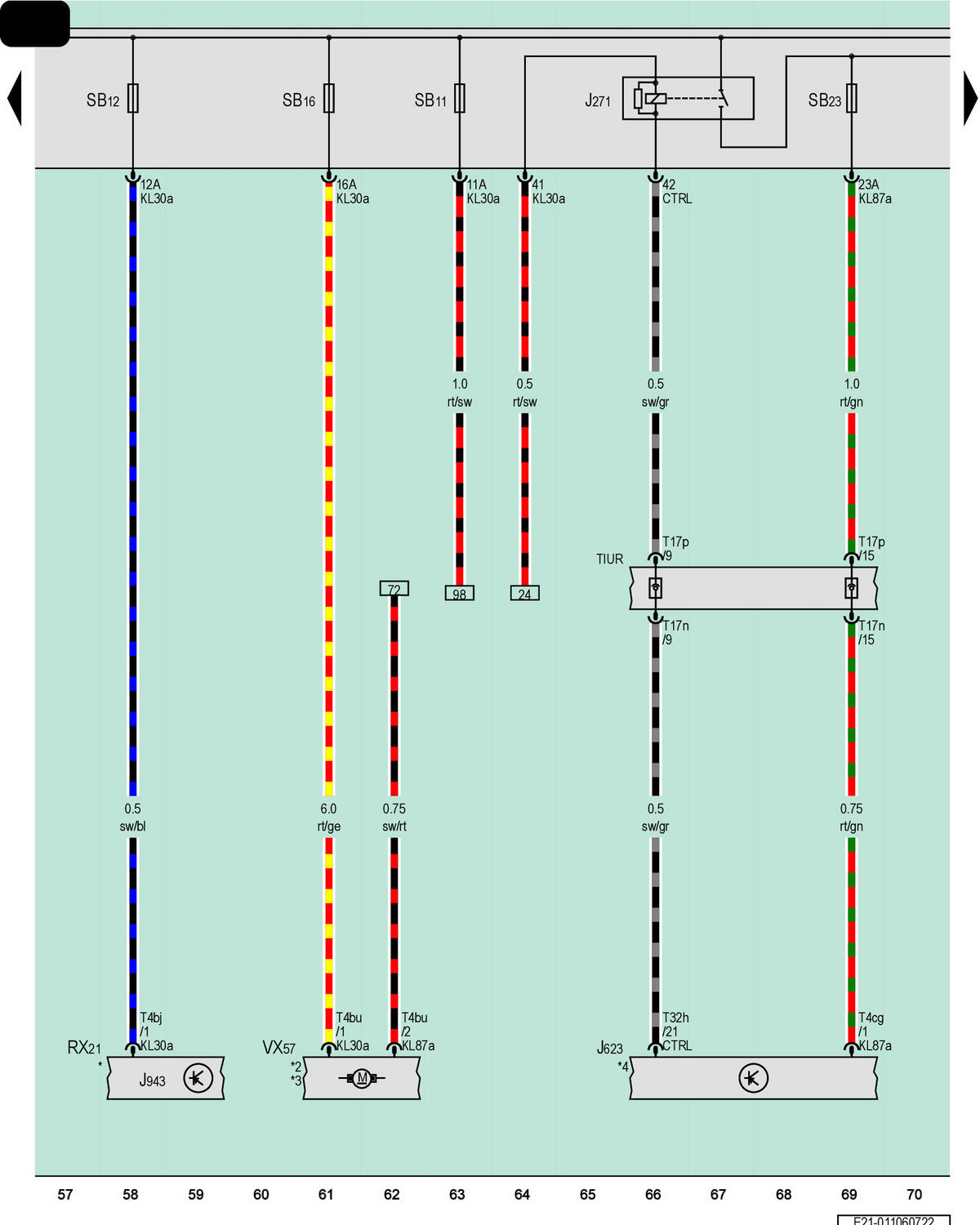

Engine/Motor Control Module, Engine Sound Generator Module 1, Fuse Panel B, Radiator Fan
J271
Motronic Engine Control Module Power Supply Relay
J623
Engine/Motor Control Module
J943
Engine Sound Generator Control Module
RX21
Engine Sound Generator Module 1
SB
Fuse Panel B
SB11
Fuse 11 (On Fuse Panel B)
SB12
Fuse 12 (On Fuse Panel B)
SB16
Fuse 16 (On Fuse Panel B)
SB23
Fuse 23 (On Fuse Panel B)
T4bj
4-Pin Connector, Black
T4bu
4-Pin Connector, Black
T4cg
4-Pin Connector, Black
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T32h
32-Pin Connector, Blue
TIUR
Coupling Point in Interior, Bottom Right
VX57
Radiator Fan
*
Refer to the Applicable Engine Sound Generator Wiring Diagram
*2
Pre-Wired Component
*3
Refer to Applicable Radiator Fan Wiring Diagram
*4
Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram
