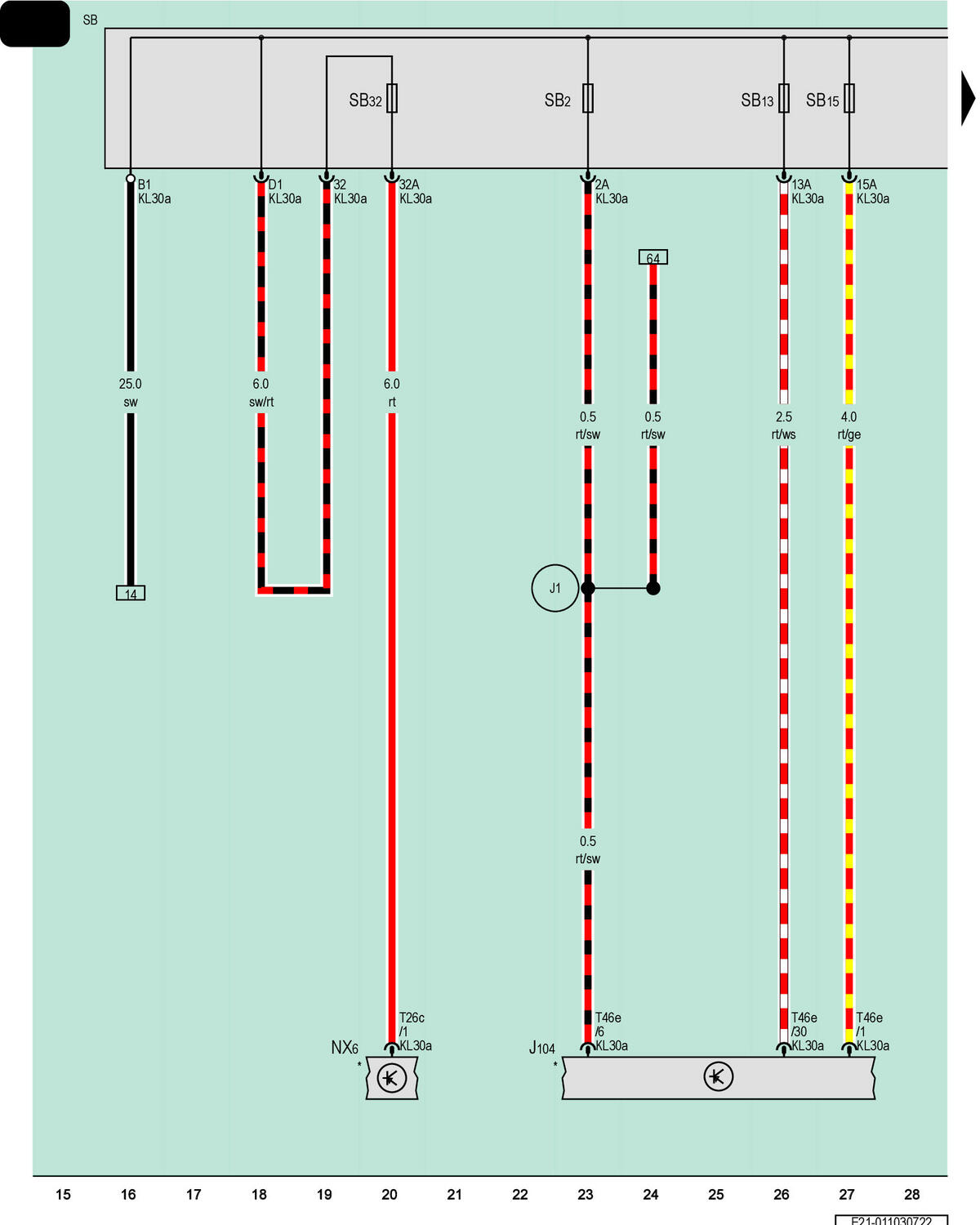

Abs Control Module, Brake Booster, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

NX6

Brake Booster

SB

Fuse Panel B

SB2

Fuse 2 (On Fuse Panel B)

SB13

Fuse 13 (On Fuse Panel B)

SB15

Fuse 15 (On Fuse Panel B)

SB32

Fuse 32 (On Fuse Panel B)

T26c

26-Pin Connector, Black

T46e

46-Pin Connector, Black

J1

Positive Connection (30) (in ABS Wiring Harness)

*

Refer to Applicable Brake System Wiring Diagram
