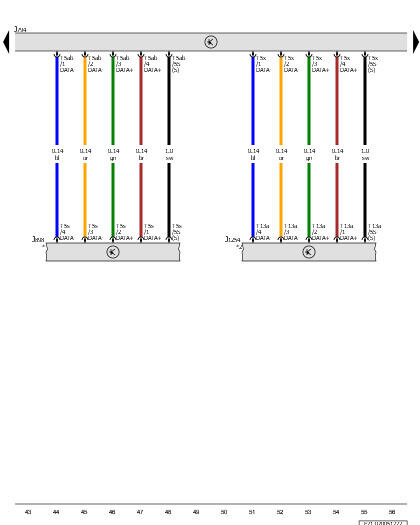

Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, Driver Information System Control Module With Display Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

J1254

Driver Information System Control Module with Display Unit

T5ab

5-Pin Connector, Green

T5s

5-Pin Connector, Naturally Cloudy

T5x

5-Pin Connector, Gray

T13a

13-Pin Connector, Naturally Cloudy

*

Refer to Applicable Windshield Projection Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Instrument Cluster
