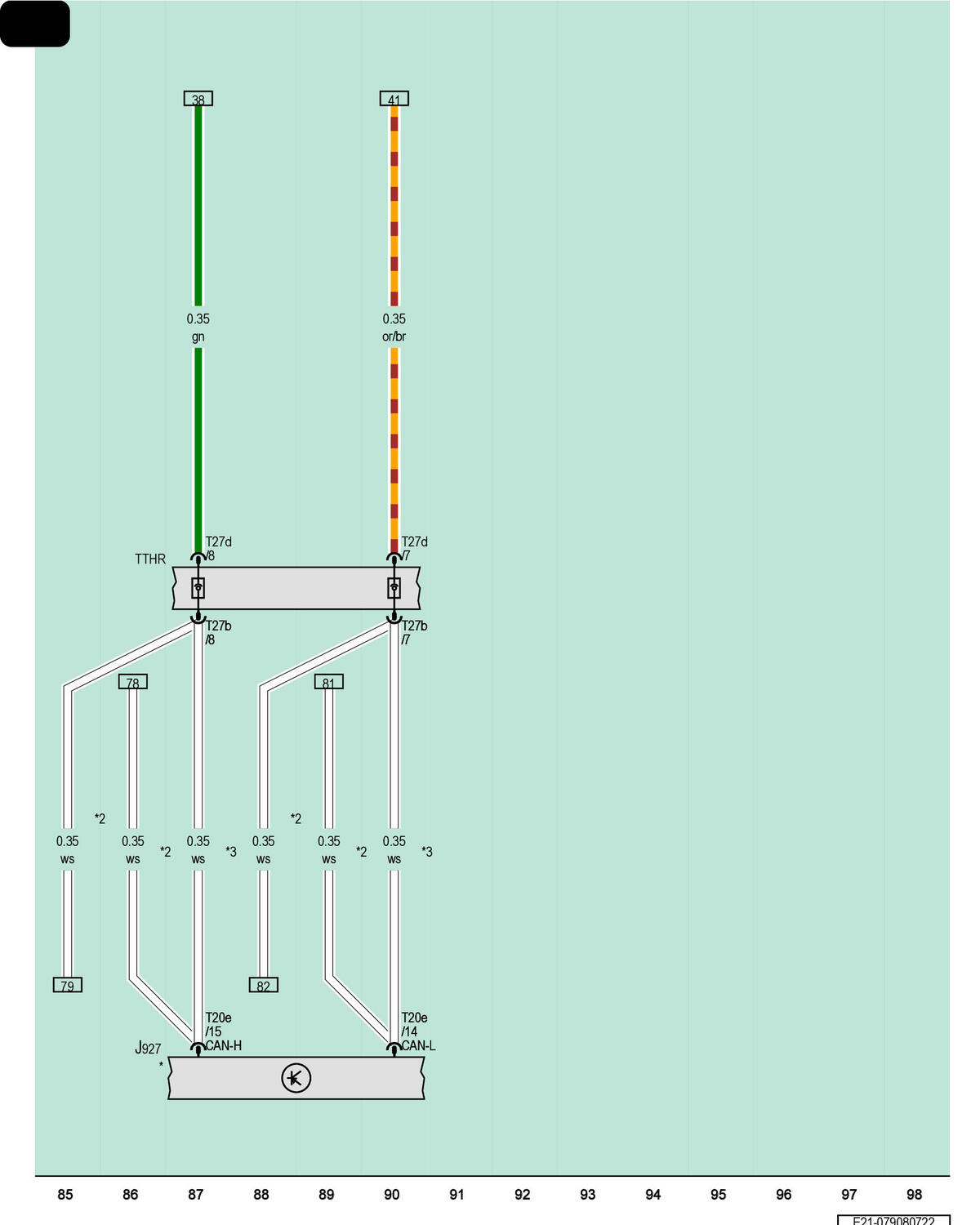

Passenger Side Rear Door Control Module

GWWE21-079080722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J927

Passenger Side Rear Door Control Module

T20e

20-Pin Connector, White

T27b

27-Pin Connector, Black

T27d

27-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

*

Refer to Applicable Front Passenger Door Control Module Wiring Diagram

*2

For RHD Vehicles

*3

For LHD Vehicles
