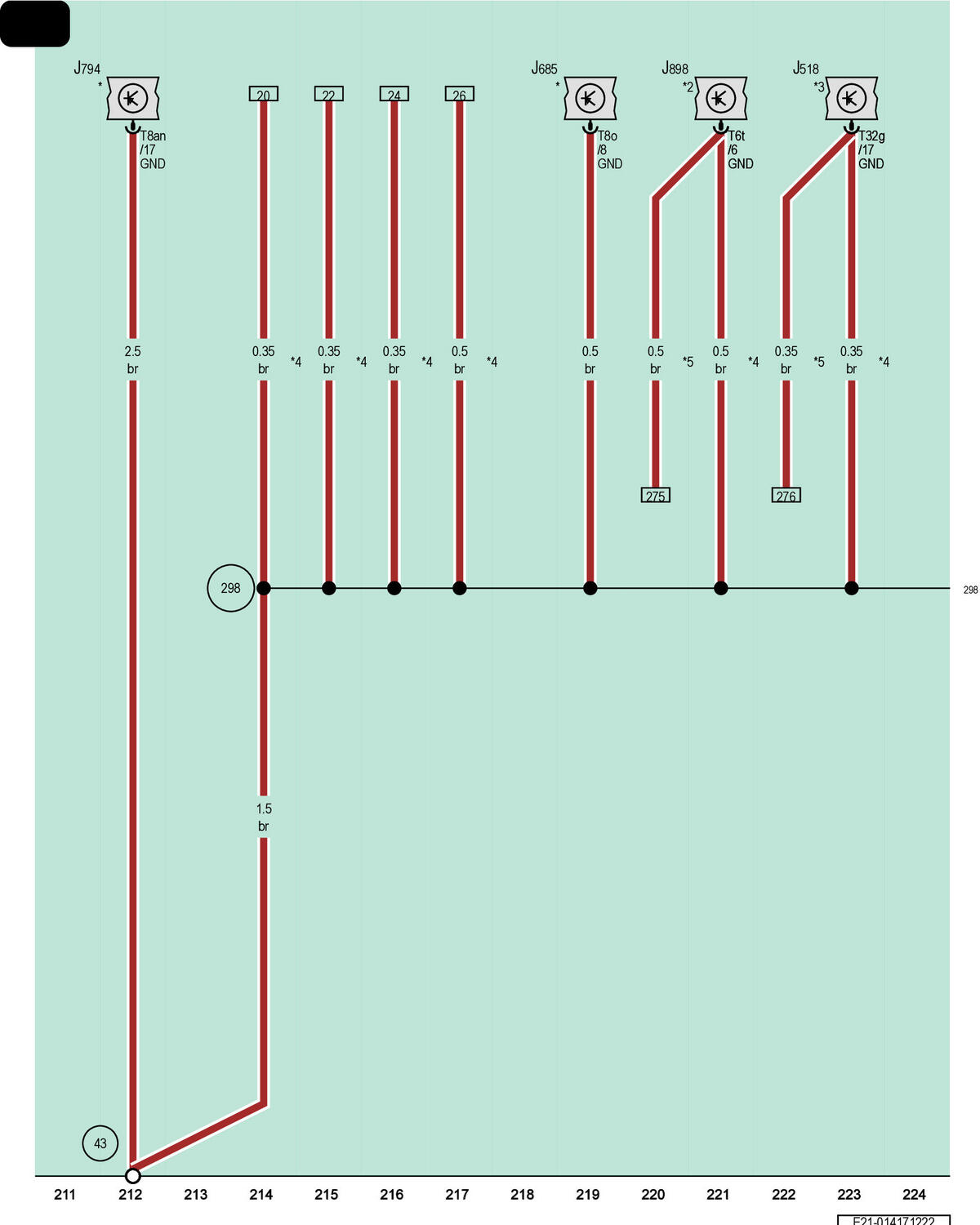

Access/Start Authorization Control Module, Front Information Display Control Head, Windshield Projection Head Up Display Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J518

Access/Start Authorization Control Module

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

T6t

6-Pin Connector, Black

T8an

8-Pin Connector, Black

T8o

8-Pin Connector, Black

T32g

32-Pin Connector, Gray

43

Ground Connection on A-Pillar, Lower Right

298

Ground Connection 13 (in Interior Wiring Harness)

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Refer to Applicable Windshield Projection Wiring Diagram

*3

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*4

For RHD Vehicles

*5

For LHD Vehicles
