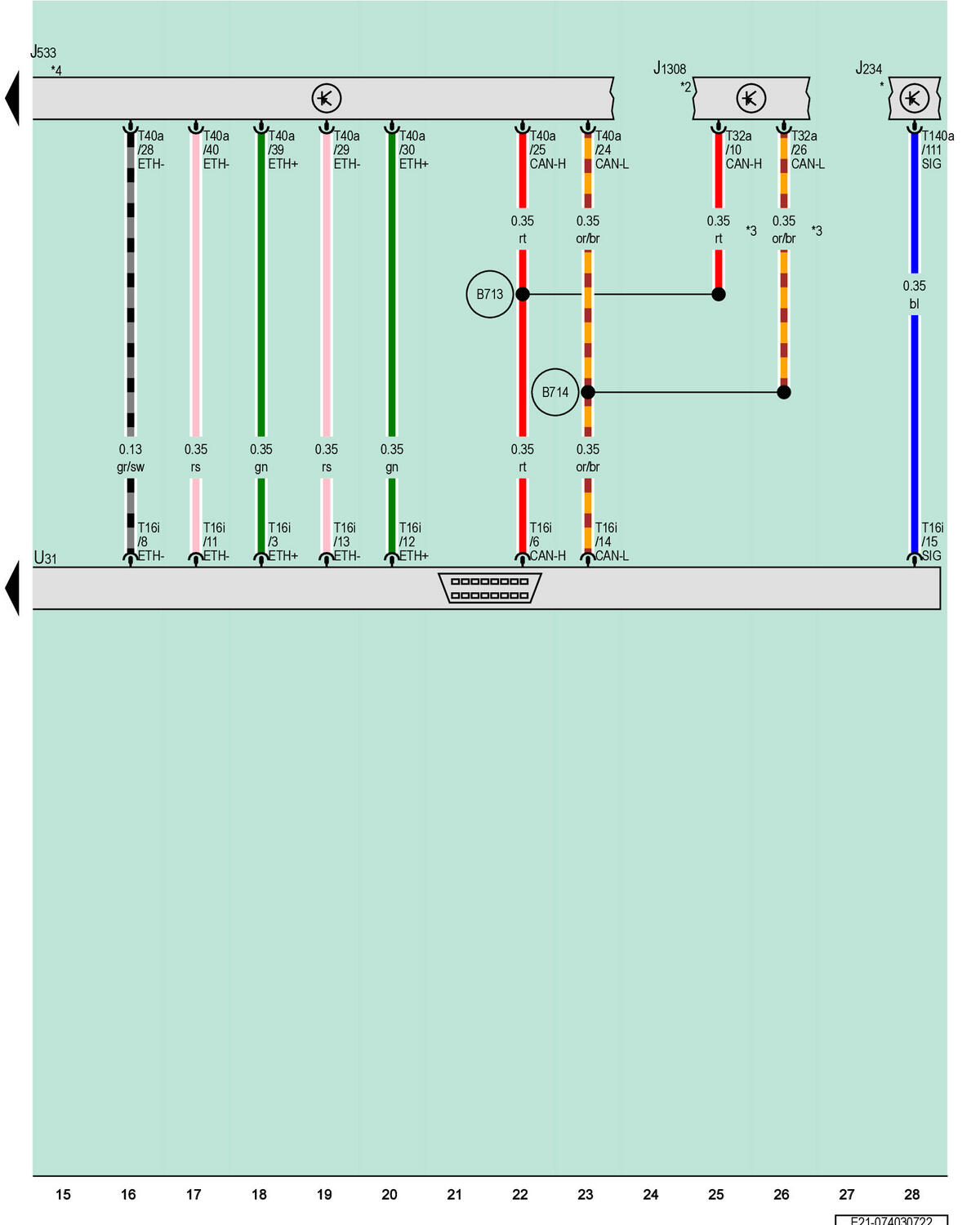

Airbag Control Module, Data Bus On Board Diagnostic Interface, Control Module For Mobile Communication Controlled Access/Start Authorization System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J1308

Control Module for Mobile Communication Controlled Access/Start Authorization System

T16i

16-Pin Connector, Black

T32a

32-Pin Connector, Black

T40a

40-Pin Connector, Black

T140a

140-Pin Connector, Yellow

U31

Diagnostic Connection

B713

Diagnostic CAN Bus High Connection 1 (in Main Wiring Harness)

B714

Diagnostic CAN Bus Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Applicable Wiring Diagram

*3

From November 2021

*4

Refer to Applicable Wiring Diagram for Data Bus Networking
