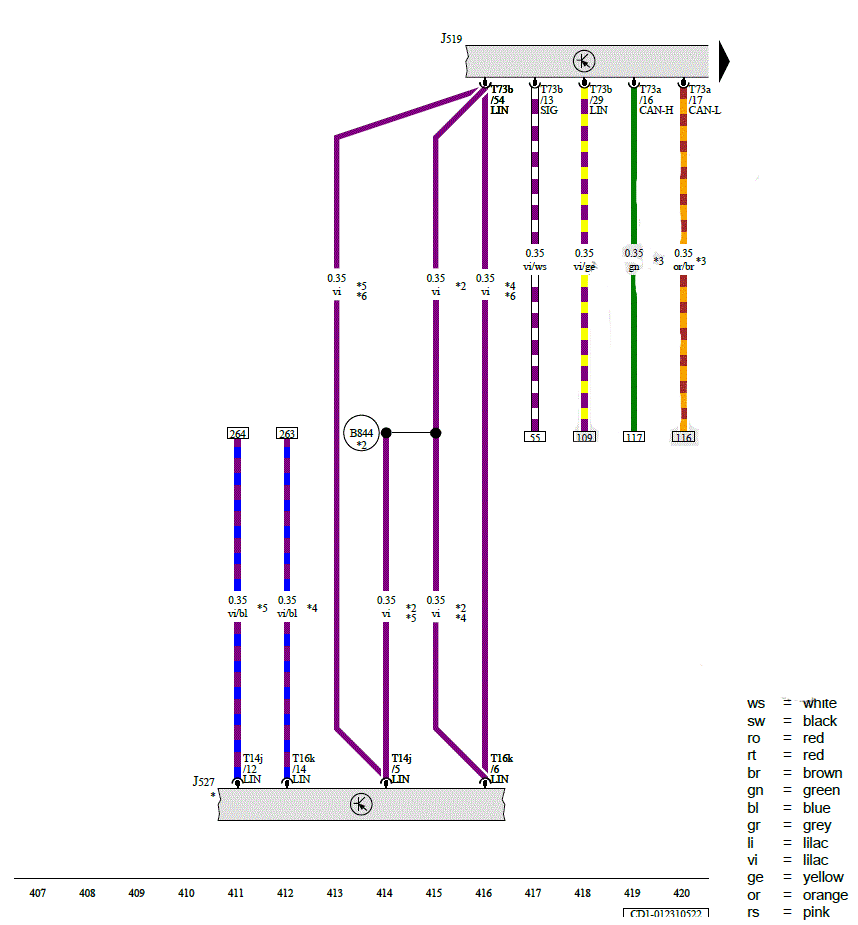

Vehicle Electrical System Control Module, Steering Column Electronics Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

T14j

14-Pin Connector, Black

T16k

16-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

B844

LIN Bus Connection 10 (in Main Wiring Harness)

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

From November 2020

*3

For Vehicles with Trailer Socket

*4

For Vehicles Without Heated Steering Wheel

*5

For Vehicles with Heated Steering Wheel

*6

Through November 2020
