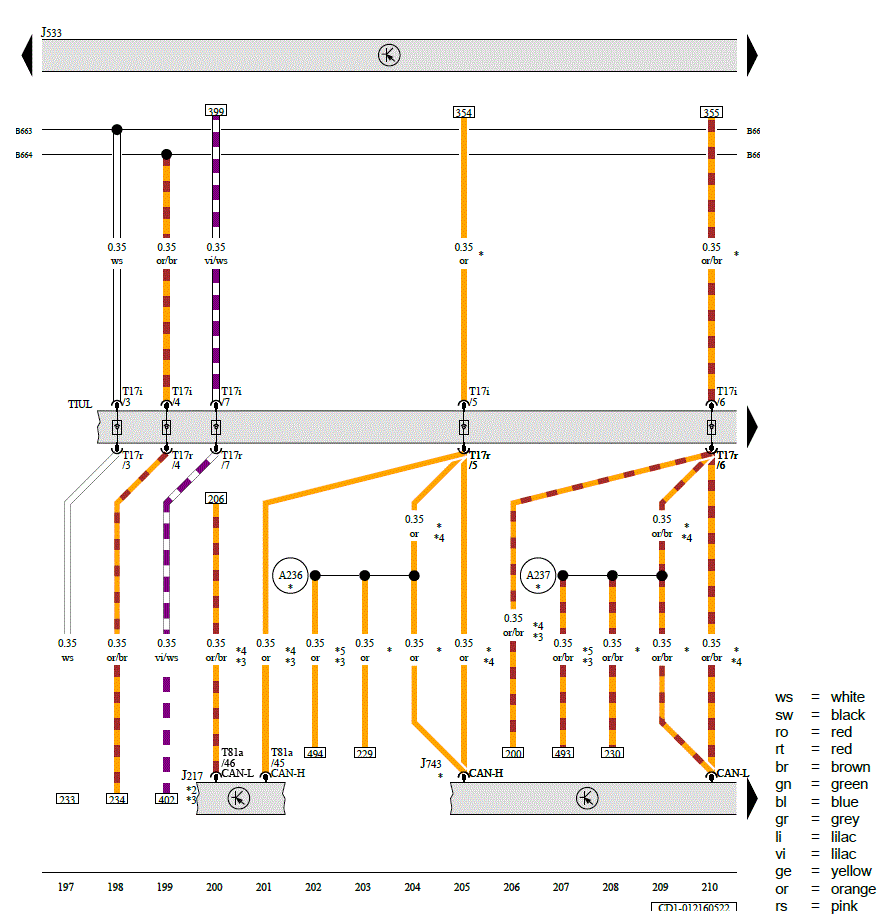

Transmission Control Module, Data Bus on Board Diagnostic Interface, Dual-Clutch Transmission Mechatronic

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J217

Transmission Control Module

J533

Data Bus on Board Diagnostic Interface

J743

Dual-Clutch Transmission Mechatronic

T17i

17-Pin Connector, Brown

T17r

17-Pin Connector, Brown

T81a

81-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

A236

CAN Bus Drive High Connection 1 (in Instrument Panel Wiring Harness)

A237

CAN Bus Drive Low Connection 1 (in Instrument Panel Wiring Harness)

B663

Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)

B664

Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)

*2

Refer to Applicable Wiring Diagram for Automatic Transmission

*3

From July 2020

*4

Depending on Equipment

*5

For Vehicles with Hybrid Drive
