Schematic Overview - Transmission, Fwd

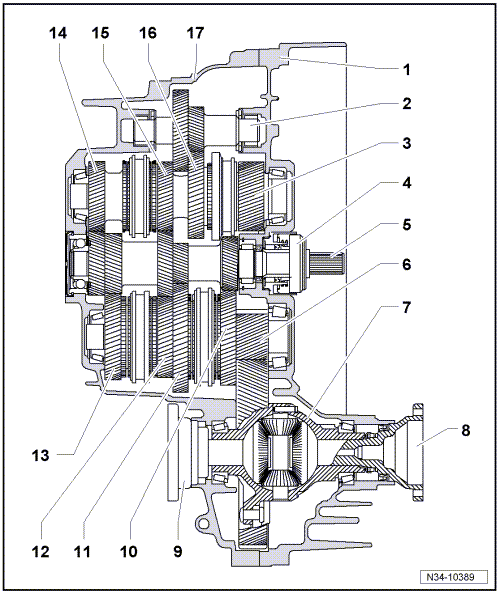

Fig 1: Exploded View Of Transmission, FWD
GWWN34-10389Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Clutch Housing
  2. Reverse Shaft
  3. 5th, 6th and Reverse Gear Output Shaft
  4. Clutch Slave Cylinder with Release Bearing
  5. Input Shaft
  6. 1st through 4th Gear Output Shaft
  7. Differential
  8. Right Flange Shaft
  9. Left Flange Shaft
  10. 2nd Gear Assembly
  11. 1st Gear Assembly
  12. 4th Gear Assembly
  13. 3rd Gear Assembly
  14. 5th Gear Assembly
  15. 6th Gear Assembly
  16. Reverse Gear Assembly
  17. Transmission Housing
