Overview - Shift Forks

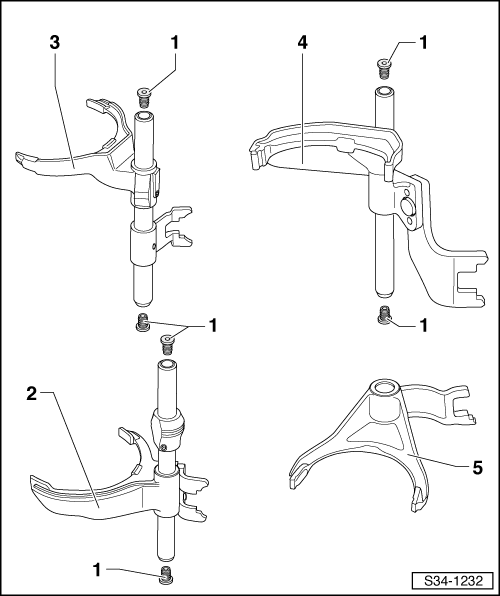

Fig 1: Exploded View Of Shift Forks
GWWS34-1232Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rubber Damper
    • Remove or insert from the gearshift rod by hand.
  2. Shift Rod with 1st and 2nd Gear Shift Fork
  3. Shift Rod with 3rd and 4th Gear Shift Fork
  4. Shift Rod with 5th and 6th Gear Shift Fork
  5. Reverse Gear Shift Fork
    • Is mounted on the gearshift rod with the 5th and 6th gear shift fork. Refer to Figure or Refer to Figure.
