Fluid Fill Or Drain Plug Tightening Specification

Different Versions of Fluid Fill or Drain Plug

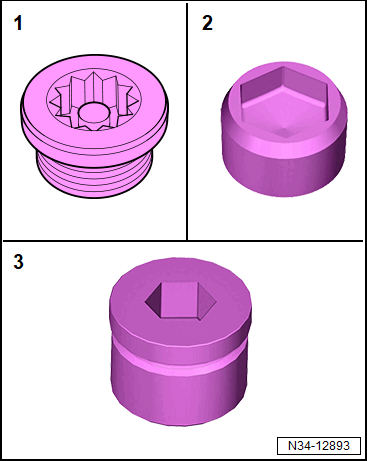

Fig 1: Different Versions of Fluid Fill or Drain Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -1- - Fluid fill or drain plug with internal multi-point, 45 Nm
• -2- - Fluid fill or drain plug with internal multi-point, without collar, 35 Nm
• -3- - Fluid fill or drain plug with internal multi-point, with collar, 45 Nm
