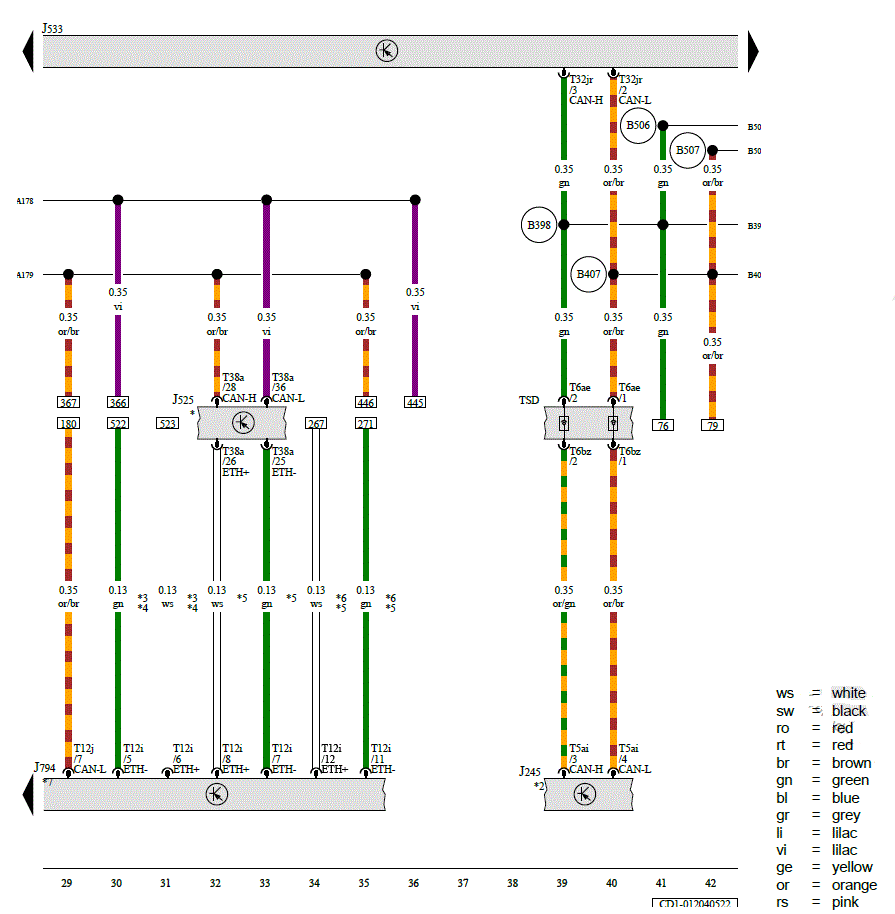

Sunroof Control Module, Digital Sound System Control Module, Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1
J245
Sunroof Control Module
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
T5ai
5-Pin Connector, Black
T6ae
6-Pin Connector, Black
T6bz
6-Pin Connector, Black
T12i
12-Pin Connector, Green
T12j
12-Pin Connector, Gray
T32jr
32-Pin Connector, Black
T38a
38-Pin Connector, Black
TSD
Sunroof Coupling Point
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
*
Refer to Applicable Sound System Wiring Diagram
*2
Refer to the Applicable Sunroof Wiring Diagram
*3
For Vehicles with Japan Equipment
*4
From July 2020
*5
From November 2020
*6
For RHD Vehicles
*7
Refer to the Applicable Multimedia System Wiring Diagram
