Condenser, Removing And Installing: Removing

Immediately seal off any open lines and connections with clean plugs from the Engine Bung Set: VAS 6122  .

Continuation

-- Disconnect the refrigerant lines from the condenser. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING FROM CONDENSER  .

Vehicles with 1.0L and 1.5L TFSI Engine:

-- Remove the air filter housing. Refer to the appropriate Service Information .

-- Remove the fan shroud. Refer to the appropriate Service Information .

Radiator Mount with Catches

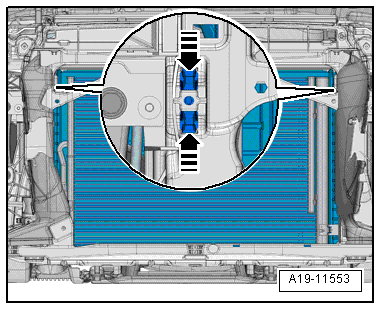

-- Cut through the catches -arrows- of the retainers with a commercially available diagonal cutter.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

The radiator mount can be reused. It is attached to the lock carrier. Bolts. Refer to the Parts Information.

Radiator Mount with Threaded Connection

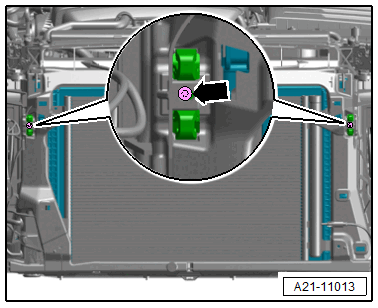

-- Remove the bolts -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

-- Press the radiator with the charge air cooler and condenser lightly in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with 2.0L TDI Engine

-- Remove the charge air cooling circuit cooler. Refer to the appropriate Service Information .

Vehicles with 2.0L TFSI Engine

-- Remove the charge air cooler. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, GOLF, TIGUAN, ARTEON, T-ROC AND PASSAT .

Continuation for all vehicles

-- Release the right and left sealing lip -1- on the bottom in the -direction of the arrow A- and on the top in the -direction of the arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

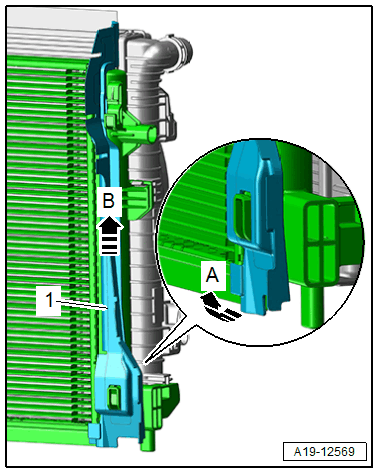

-- Release the catches -1- in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the condenser -3- in the -direction of the arrow B- from the mounts -2-.
