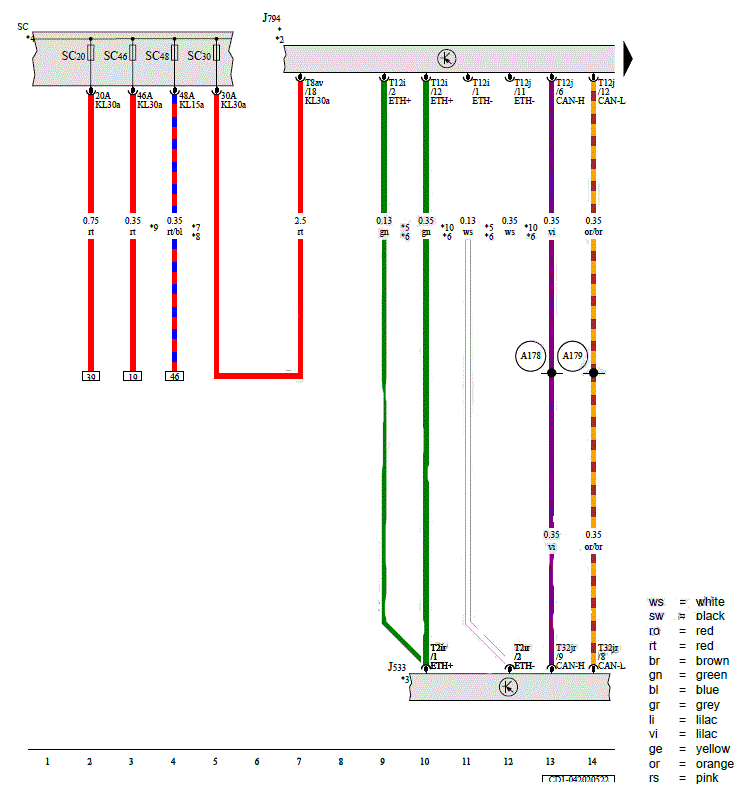

Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1, Fuse Panel C
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
SC
Fuse Panel C
SC20
Fuse 20 (On Fuse Panel C)
SC30
Fuse 30 (On Fuse Panel C)
SC46
Fuse 46 (On Fuse Panel C)
SC48
Fuse 48 (On Fuse Panel C)
T2ir
2-Pin Connector, White
T8av
8-Pin Connector, Black
T12i
12-Pin Connector, Green
T12j
12-Pin Connector, Gray
T32jr
32-Pin Connector, Black
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
*
Refer to Applicable Sound System Wiring Diagram
*2
Refer to the Applicable USB Charging Socket Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Data Bus Networking
*4
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*5
For Vehicles with Standard Equipment
*6
The Color of the Wires Depends on Vehicle Equipment
*7
Through July 2022
*8
Not for Vehicles with USB Connection for Increased Charging Capacity
*9
For Vehicles with Navigation System
*10
For Vehicles with Convenience Equipment
