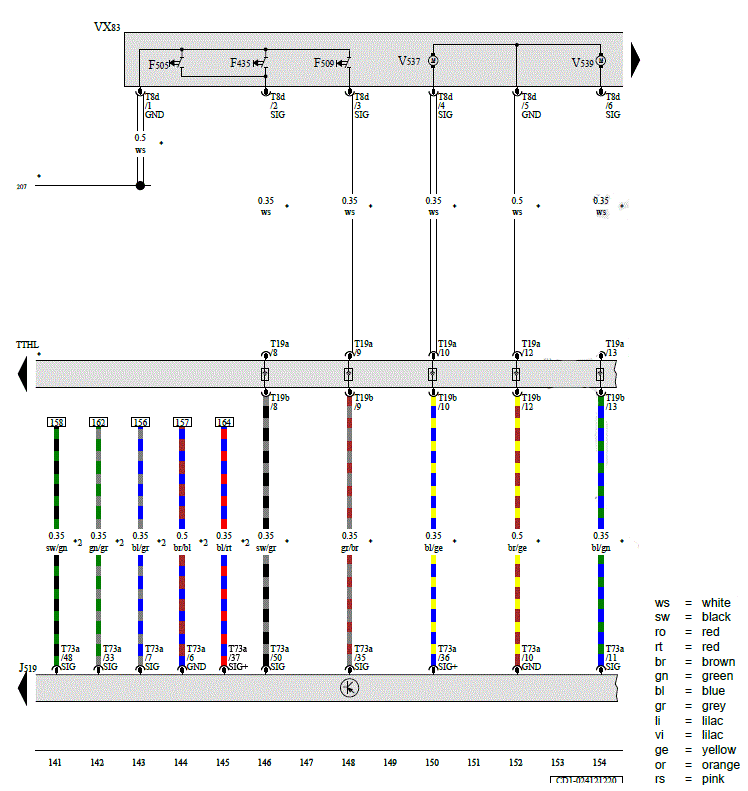

Vehicle Electrical System Control Module, Driver Side Rear Door Lock Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F435

Driver Side Rear Central Locking Lock Unit

F505

Driver Side Rear Door Contact Switch

F509

Driver Side Rear Central Locking System Actuator

J519

Vehicle Electrical System Control Module

T8d

8-Pin Connector, Black

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T73a

73-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

VX83

Driver Side Rear Door Lock Unit

V537

Driver Side Rear Door Central Locking -Safe- Motor

V539

Driver Side Rear Central Locking System Motor

207

Ground Connection (in Left Rear Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
