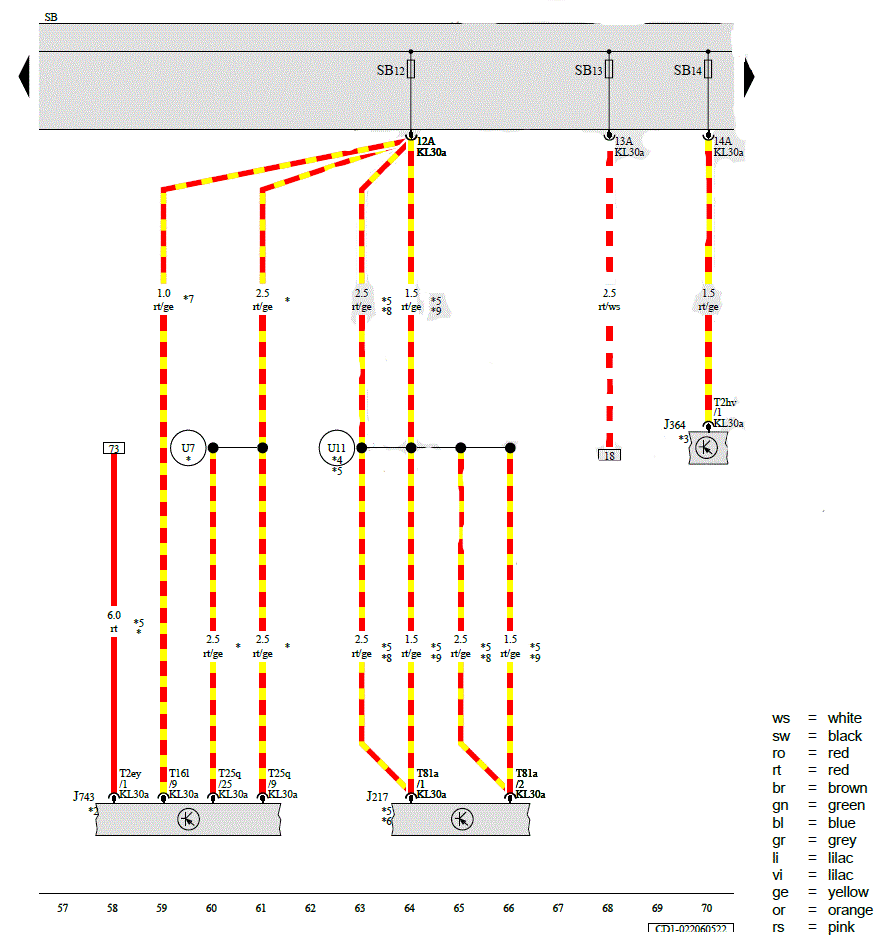

Transmission Control Module, Auxiliary Heater Control Module, Dual-Clutch Transmission Mechatronic, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J217

Transmission Control Module

J364

Auxiliary Heater Control Module

J743

Dual-Clutch Transmission Mechatronic

SB

Fuse Panel B

SB12

Fuse 12 (On Fuse Panel B)

SB13

Fuse 13 (On Fuse Panel B)

SB14

Fuse 14 (On Fuse Panel B)

T2ey

2-Pin Connector, Black

T2hv

2-Pin Connector, Black

T16l

16-Pin Connector, Black

T25q

25-Pin Connector, Black

T81a

81-Pin Connector, Black

U7

Connection 87 (in Automatic Transmission Wiring Harness)

U11

Connection 3 (in Automatic Transmission Wiring Harness)

*

For Vehicles with Automatic Transmission (DSG)

*2

Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)

*3

Refer to Applicable Wiring Diagram for Auxiliary Coolant Heater

*4

For Vehicles with Automatic Transmission

*5

From July 2020

*6

Refer to Applicable Wiring Diagram for Automatic Transmission

*7

For Vehicles with Automatic Transmission (DSG) 0CW

*8

For Vehicles with 6-Speed Automatic Transmission and Tiptronic

*9

For Vehicles with 8-Speed Automatic Transmission
