Front Axle Differential Lock, Transporting

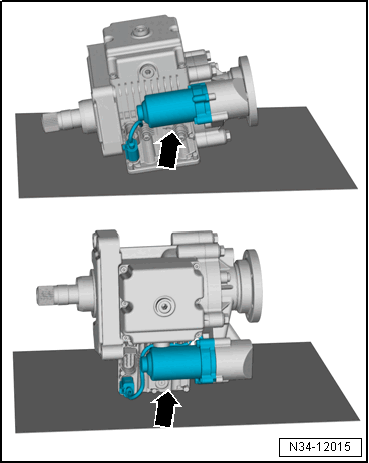

When transporting, the All-Wheel Drive Clutch Pump -V181- -arrows- is in one of the positions shown.

Fig 1: Identifying Haldex Clutch Pump
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
The oil chamber of the front axle differential lock is ventilated via a hole in the housing.
Do not turn or tilt the front axle differential lock, because otherwise oil will leak through this ventilation.
Only place down in the shown position, do not place on the flange.
Prevent front axle differential lock connectors from becoming damaged.
