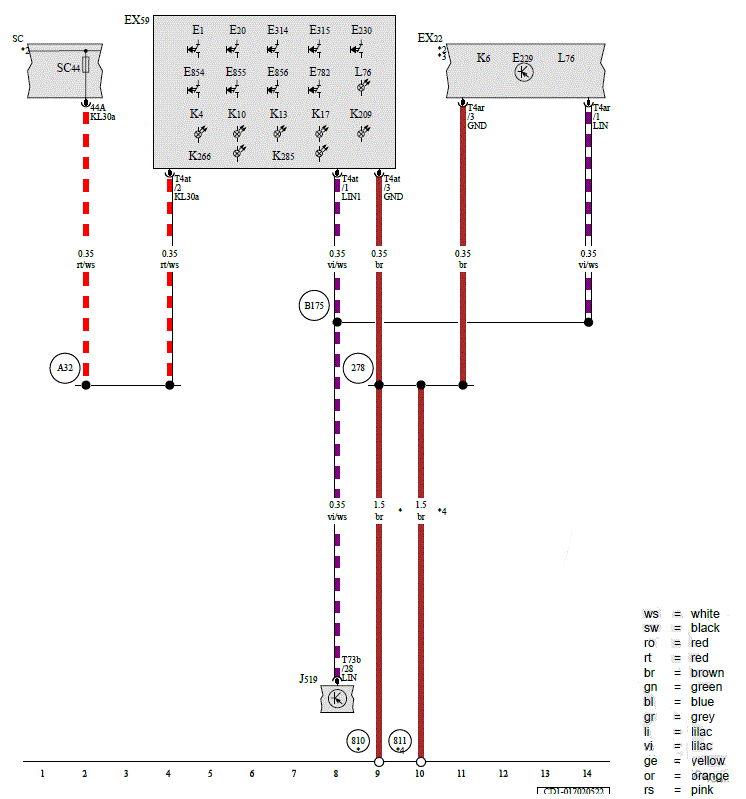

Center Instrument Panel Switch Module, Illumination Control Head, Vehicle Electrical System Control Module, Fuse Panel C
E1
Light Switch
E20
Instrument Panel and Switch Illumination Dimmer Switch
EX22
Center Instrument Panel Switch Module
EX59
Illumination Control Head
E229
Emergency Flasher Button
E230
Rear Window Defogger Button
E314
Rear Fog Lamp Button
E315
Fog Lamp Button
E782
Defrost Button
E854
Automatic High Beam Button
E855
Position Lamp Button
E856
Low Beam Button
J519
Vehicle Electrical System Control Module
K4
Position Lamp Indicator Lamp
K6
Emergency Flasher Indicator Lamp
K10
Rear Window Defogger Indicator Lamp
K13
Rear Fog Lamp Indicator Lamp
K17
Fog Lamp Indicator Lamp
K209
Automatic Light Control Indicator Lamp
K266
Low Beam Indicator Lamp
K285
Defrost Indicator Lamp
L76
Push Button Illumination Bulb
SC
Fuse Panel C
SC44
Fuse 44 (On Fuse Panel C)
T4ar
4-Pin Connector, Red
T4at
4-Pin Connector, Red
T73b
73-Pin Connector, Black
278
Ground Connection 4 (in Interior Wiring Harness)
810
Ground Connection on Left Center Instrument Panel Central Tube
811
Ground Connection on Right Center Instrument Panel Central Tube
A32
Positive Connection (30) (in Instrument Panel Wiring Harness)
B175
Central Locking Connection (in Interior Wiring Harness)
*
For LHD Vehicles
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to Applicable Wiring Diagram
*4
For RHD Vehicles
