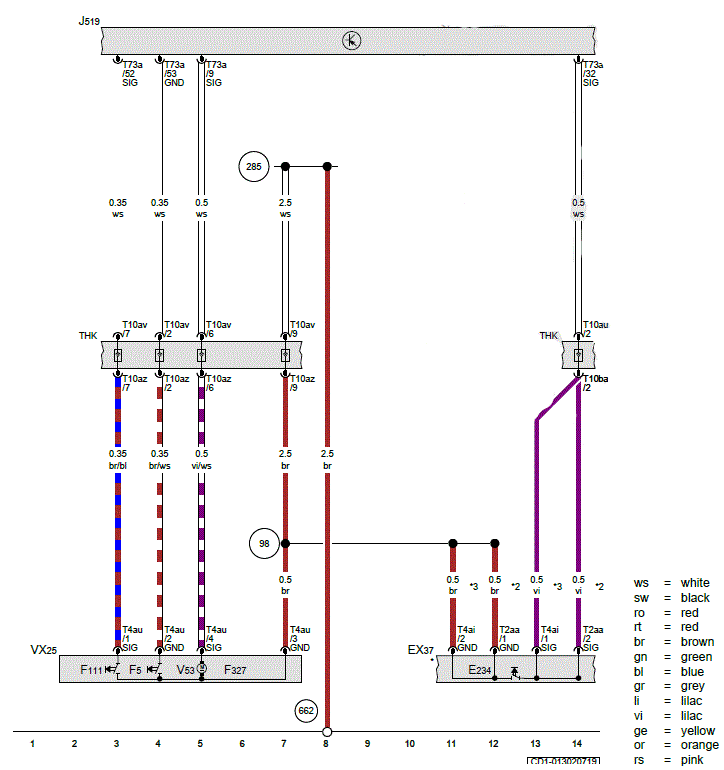

Rear Lid Handle, Vehicle Electrical System Control Module, Rear Lid Lock Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX37

Rear Lid Handle

E234

Release Button in Rear Lid Handle

F5

Luggage Compartment Lamp Switch

F111

Rear Lid Contact Switch

F327

Central Locking Lock Module in Rear Lid

J519

Vehicle Electrical System Control Module

T2aa

2-Pin Connector, Black

T4ai

4-Pin Connector, Black

T4au

4-Pin Connector, Black

T10au

10-Pin Connector, Black

T10av

10-Pin Connector, Brown

T10az

10-Pin Connector, Brown

T10ba

10-Pin Connector, Black

T73a

73-Pin Connector, Black

THK

Rear Lid Coupling Point

VX25

Rear Lid Lock Unit

V53

Rear Lid Central Locking System Motor

98

Ground Connection (in Rear Lid Wiring Harness)

285

Ground Connection 7 (in Interior Wiring Harness)

662

Ground Connection in Left Rear Side Panel

*

Refer to Applicable Power Rear Lid Wiring Diagram

*2

For Vehicles Without Rearview Camera System

*3

For Vehicles with Rearview Camera System
