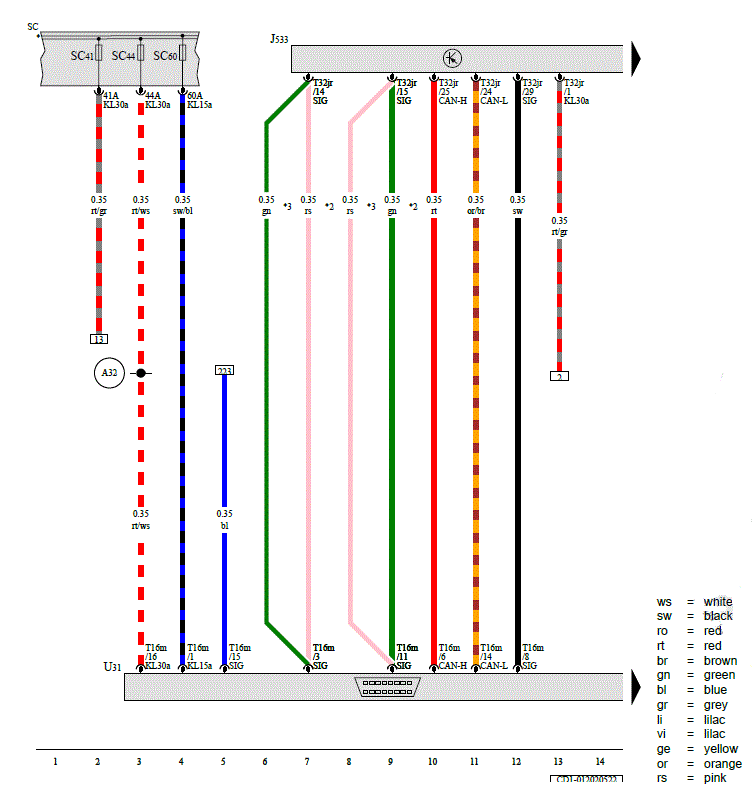

Data Bus on Board Diagnostic Interface, Fuse Panel C, Diagnostic Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

SC

Fuse Panel C

SC41

Fuse 41 (On Fuse Panel C)

SC44

Fuse 44 (On Fuse Panel C)

SC60

Fuse 60 (On Fuse Panel C)

T16m

16-Pin Connector, Black

T32jr

32-Pin Connector, Black

U31

Diagnostic Connection

A32

Positive Connection (30) (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Through November 2020

*3

From November 2020
