Overview - Condenser

The overview shows an example for a Denso condenser.

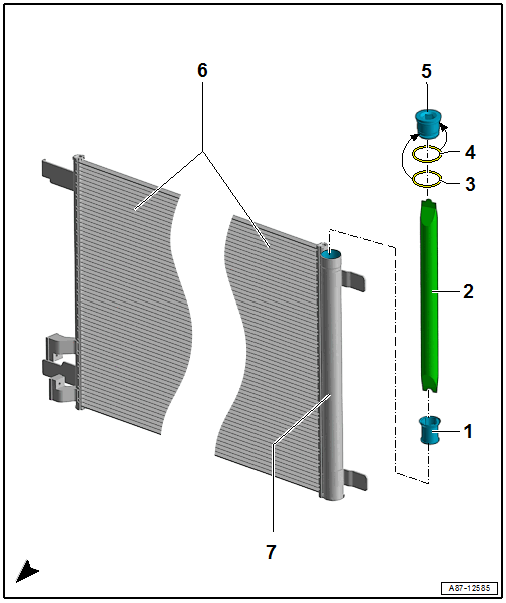

Fig 1: Exploded View Of Condenser

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Receiver/Dryer Insert
   • Depending on equipment/version
2. Desiccant Bag/Dryer Cartridge
   • Depending on equipment/version
   • Refer to Desiccant Bag/Dryer Cartridge, Removing and Installing  .
3. O-Ring
   • Replace after removing
4. O-Ring
   • Replace after removing
5. Plug
   • Depending on equipment/version
   • Replace after removing
   • Refer to Desiccant Bag/Dryer Cartridge, Removing and Installing  .
   • Modine: 3 Nm
   • Showa/ Keihin/Denso : 5 Nm
   • Valeo: 10 Nm
6. Condenser
   • Depending on equipment/version
   • Refer to Condenser, Removing and Installing  .
7. Receiver/Dryer
   • Only to be replace with the condenser
   • Refer to Condenser, Removing and Installing  .
