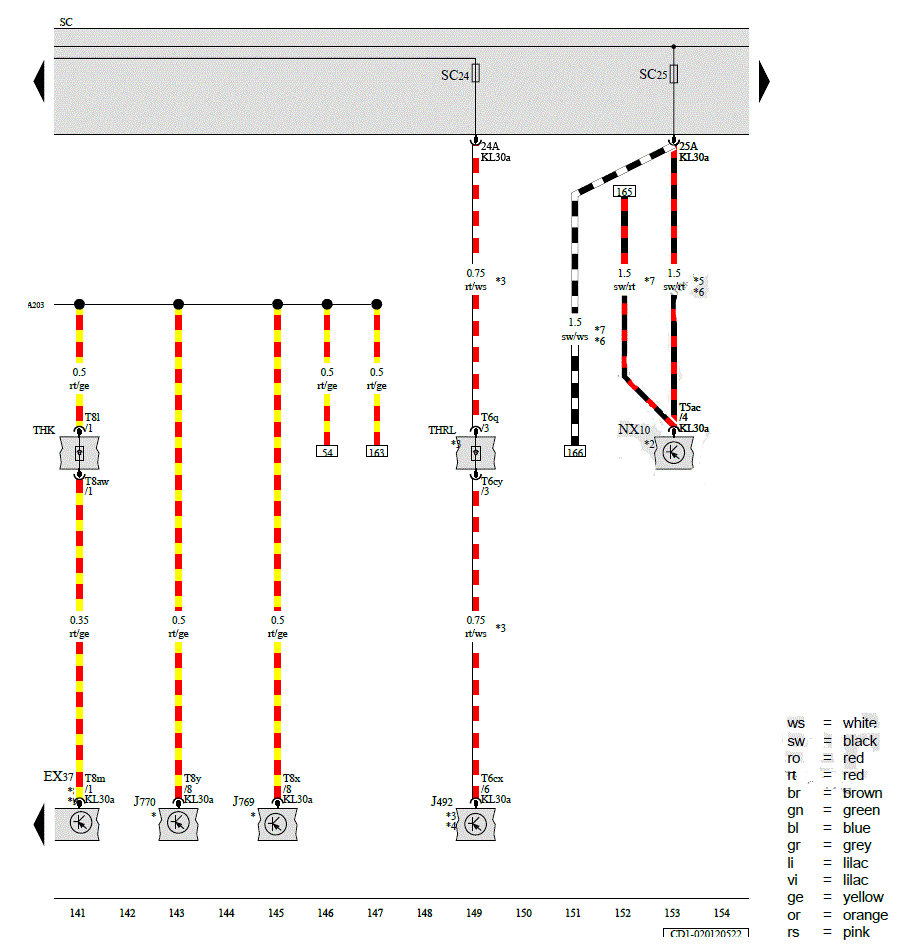

Rear Lid Handle, All-Wheel Drive Control Module, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Left Front Seat Belt, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX37

Rear Lid Handle

J492

All-Wheel Drive Control Module

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

NX10

Left Front Seat Belt

SC

Fuse Panel C

SC24

Fuse 24 (On Fuse Panel C)

SC25

Fuse 25 (On Fuse Panel C)

T5ac

5-Pin Connector, Naturally Cloudy

T6cx

6-Pin Connector, Black

T6cy

6-Pin Connector, Black

T6q

6-Pin Connector, Black

T8aw

8-Pin Connector, Black

T8l

8-Pin Connector, Black

T8m

8-Pin Connector, Black

T8x

8-Pin Connector, Black

T8y

8-Pin Connector, Black

THK

Rear Lid Coupling Point

THRL

Coupling Point in Luggage Compartment, Left

A203

Positive Connection 7 (15a) (in Instrument Panel Wiring Harness)

*

Refer to Applicable Lane Change Assistance Wiring Diagram

*2

Refer to Applicable Airbag Wiring Diagram

*3

From July 2020

*4

Refer to Applicable AWD Wiring Diagram

*5

For LHD Vehicles

*6

For Vehicles with Advanced Safety Systems

*7

For RHD Vehicles

*8

Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)

*9

Refer to Applicable Power Rear Lid Wiring Diagram
