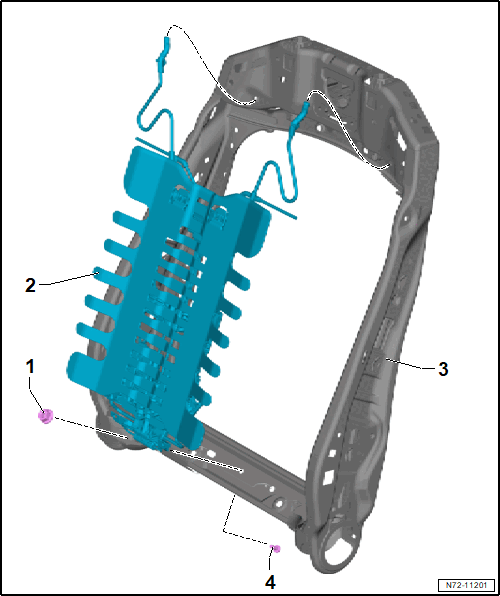

Overview - Front Backrest, Power Lumbar Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rivet
2. Lumbar Support
   • Driver Seat Lumbar Support -VX2-
   • Front Passenger Seat Lumbar Support -VX3-
   • Removing and Installing. Refer to Driver and Front Passenger Seat Lumbar Support -VX2- /Front Passenger Seat Lumbar Support -VX3-, REMOVING AND INSTALLING .
3. Backrest Frame
4. Rivet
