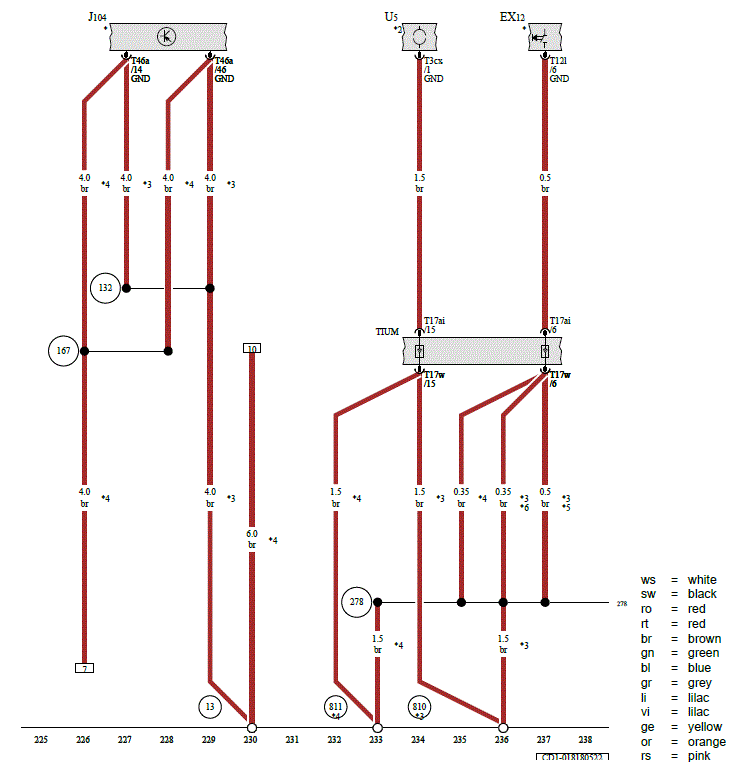

Parking Brake Button, ABS Control Module, 12 V Socket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX12

Parking Brake Button

J104

ABS Control Module

T3cx

3-Pin Connector, Naturally Cloudy

T12l

12-Pin Connector, Black

T17ai

17-Pin Connector, Black

T17w

17-Pin Connector, Black

T46a

46-Pin Connector, Black

TIUM

Coupling Point in Interior, Bottom Center

U5

12 V Socket

13

Ground Connection in Engine/Motor Compartment, Right

132

Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)

167

Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)

278

Ground Connection 4 (in Interior Wiring Harness)

810

Ground Connection on Left Center Instrument Panel Central Tube

811

Ground Connection on Right Center Instrument Panel Central Tube

*

Refer to Applicable Brake System Wiring Diagram

*2

Refer to Applicable Wiring Diagram for 12 V Sockets

*3

For LHD Vehicles

*4

For RHD Vehicles

*5

Through November 2020

*6

From November 2020
