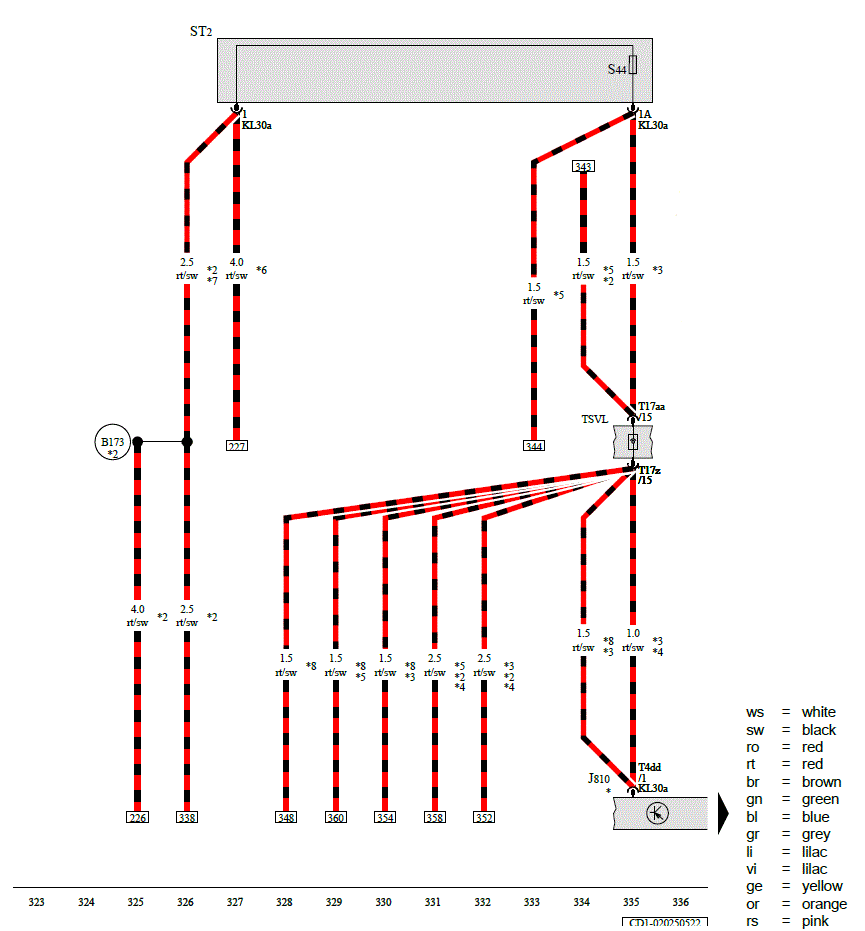

Driver Seat Adjustment Control Module, Fuse Panel 2
J810
Driver Seat Adjustment Control Module
ST2
Fuse Panel 2
S44
Driver Power Seat Adjustment Circuit Breaker 1
T4dd
4-Pin Connector, Black
T17aa
17-Pin Connector, Red
T17z
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
B173
Positive Connection 2 (X) (in Interior Wiring Harness)
*
Refer to Applicable Seat Adjustment Wiring Diagram
*2
From April 2020
*3
For LHD Vehicles
*4
Through November 2020
*5
For RHD Vehicles
*6
For Vehicles with Adjustable Seats
*7
For Vehicles with Seat Ventilation
*8
From November 2020
