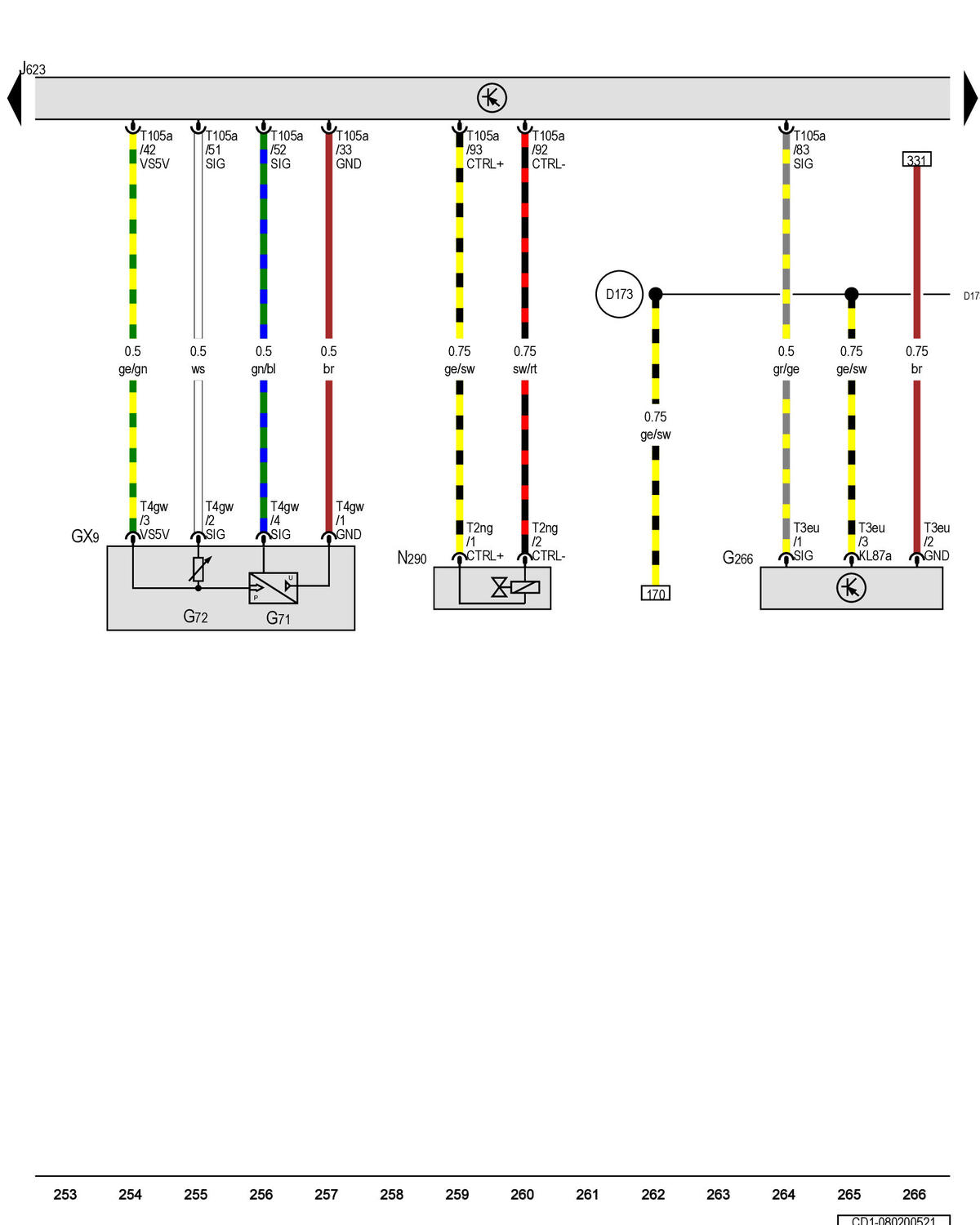

Intake Manifold Sensor, Oil Level Thermal Sensor, Engine/Motor Control Module, Fuel Metering Valve: Notes

GWWCD1-080200521Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
