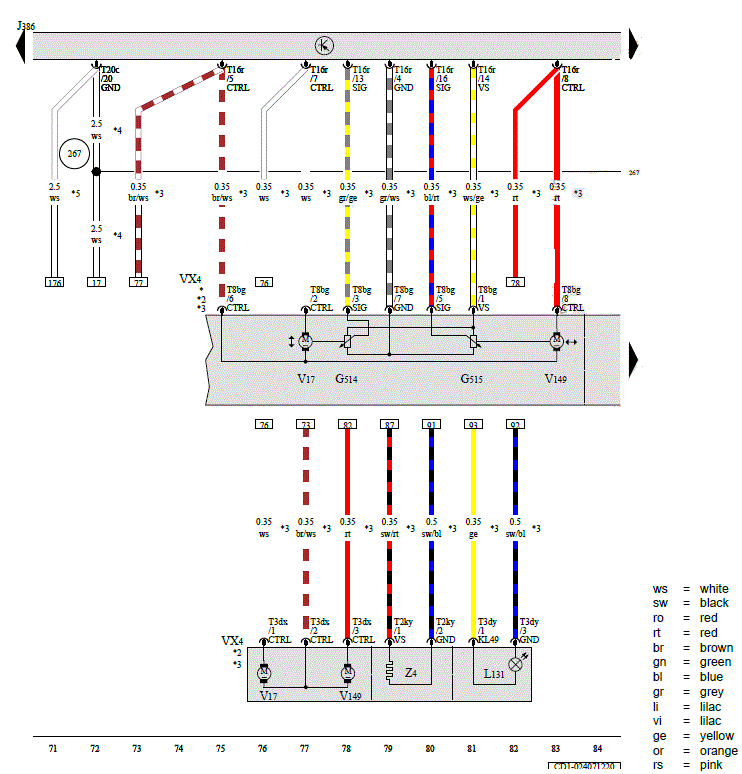

Driver Door Control Module, Driver Exterior Rearview Mirror
G514
Driver Exterior Rearview Mirror Horizontal Position Sensor
G515
Driver Exterior Rearview Mirror Vertical Position Sensor
J386
Driver Door Control Module
L131
Driver Exterior Rearview Mirror Turn Signal Bulb
T2ky
2-Pin Connector, Black
T3dx
3-Pin Connector, Black
T3dy
3-Pin Connector, Black
T8bg
8-Pin Connector, Black
T16r
16-Pin Connector, Black
T20c
20-Pin Connector, White
VX4
Driver Exterior Rearview Mirror
V17
Driver Mirror Adjustment Motor 2
V149
Driver Mirror Adjustment Motor
Z4
Heated Driver Exterior Rearview Mirror
267
Ground Connection 2 (in Driver Door Wiring Harness)
*
Refer to Applicable Lane Change Assistance Wiring Diagram
*2
Pre-Wired Component
*3
Depending on Equipment
*4
For LHD Vehicles
*5
For RHD Vehicles

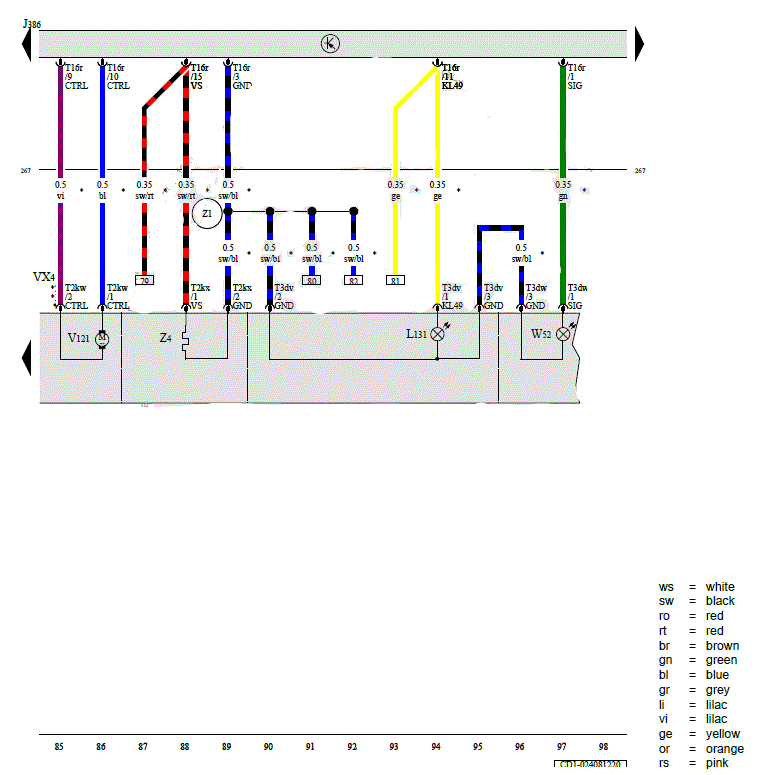

J386
Driver Door Control Module
L131
Driver Exterior Rearview Mirror Turn Signal Bulb
T2kw
2-Pin Connector, Black
T2kx
2-Pin Connector, Black
T3dv
3-Pin Connector, Black
T3dw
3-Pin Connector, Black
T16r
16-Pin Connector, Black
VX4
Driver Exterior Rearview Mirror
V121
Driver Exterior Rearview Mirror Folding Motor
W52
Driver Entry Lamp in Exterior Rearview Mirror
Z4
Heated Driver Exterior Rearview Mirror
267
Ground Connection 2 (in Driver Door Wiring Harness)
Z1
Connection 1 (in Power Heated Mirror Wiring Harness)
*
Depending on Equipment
*2
Refer to Applicable Lane Change Assistance Wiring Diagram
*3
Pre-Wired Component
