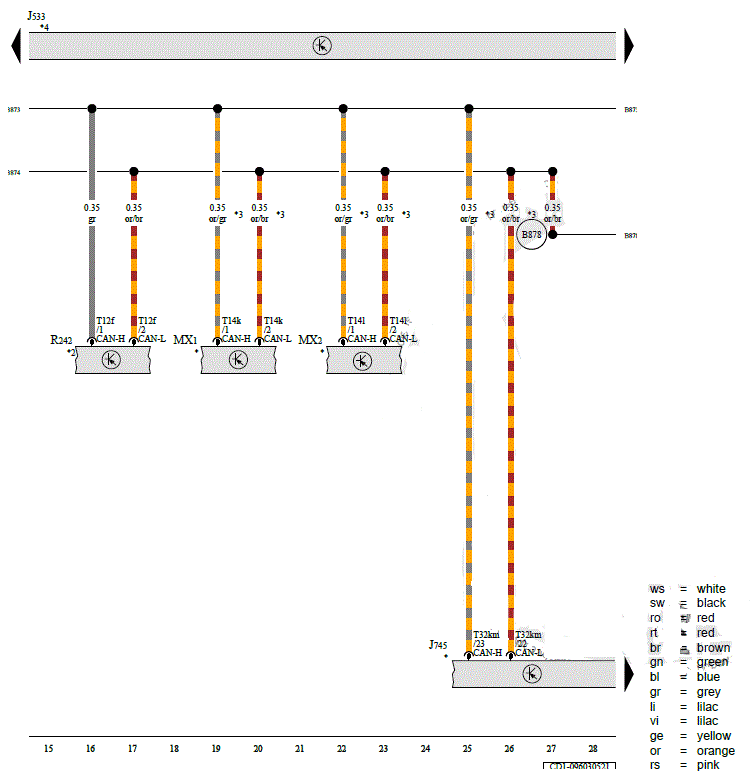

Data Bus on Board Diagnostic Interface, Cornering Lamp and Headlamp Range Control Module, Left Front Headlamp, Right Front Headlamp, Driver Assistance Systems Front Camera

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J745

Cornering Lamp and Headlamp Range Control Module

MX1

Left Front Headlamp

MX2

Right Front Headlamp

R242

Driver Assistance Systems Front Camera

T12f

12-Pin Connector, Brown

T14k

14-Pin Connector, Black

T14l

14-Pin Connector, Black

T32km

32-Pin Connector, Gray

B873

Driver Assistance Systems CAN Bus High Connection 5 (in Main Wiring Harness)

B874

Driver Assistance Systems CAN Bus Low Connection 5 (in Main Wiring Harness)

B878

Driver Assistance Systems CAN Bus Low Connection 7 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Headlamps

*2

Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram

*3

For RHD Vehicles

*4

Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
