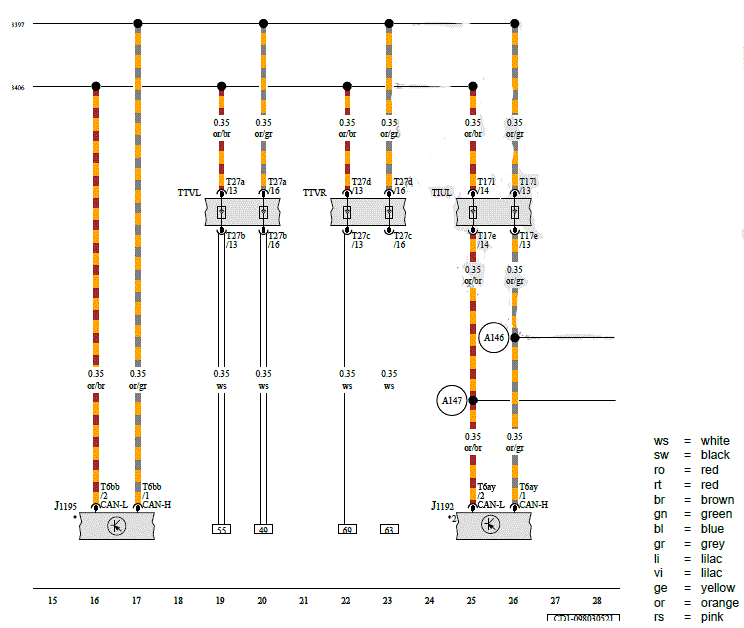

Burglary Protection Control Module 2, Burglary Protection Control Module 5
J1192
Burglary Protection Control Module 2
J1195
Burglary Protection Control Module 5
T6ay
6-Pin Connector, Black
T6bb
6-Pin Connector, Black
T17e
17-Pin Connector, Green
T17l
17-Pin Connector, Green
T27a
27-Pin Connector, Black
T27b
27-Pin Connector, Black
T27c
27-Pin Connector, Black
T27d
27-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
A146
Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147
Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
*
Refer to the Applicable Cell Phone System Wiring Diagram
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
