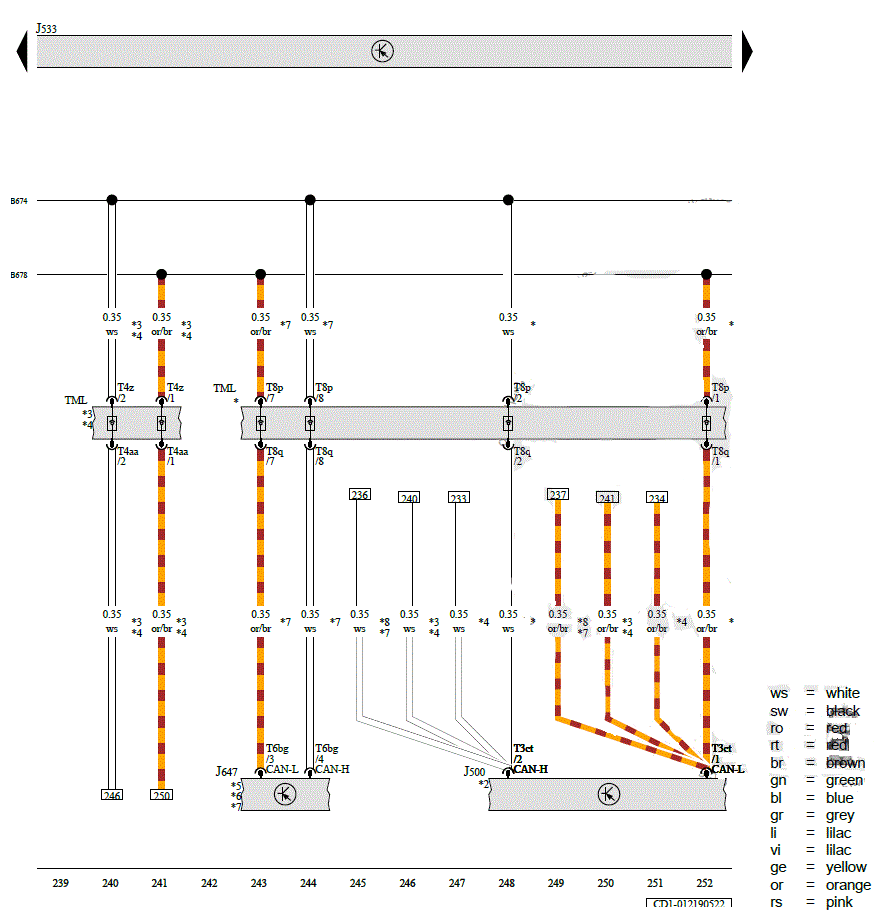

Power Steering Control Module, Data Bus on Board Diagnostic Interface, Differential Locks Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J500

Power Steering Control Module

J533

Data Bus on Board Diagnostic Interface

J647

Differential Locks Control Module

T3ct

3-Pin Connector, Black

T4aa

4-Pin Connector, Black

T4z

4-Pin Connector, Black

T6bg

6-Pin Connector, Black

T8p

8-Pin Connector, Black

T8q

8-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

B674

Suspension/Instrument Cluster CAN Bus High Connection 3 (in Main Wiring Harness)

B678

Suspension/Instrument Cluster CAN Bus Low Connection 3 (in Main Wiring Harness)

*

For Vehicles with Diesel Engine

*2

Refer to the Applicable Steering Wiring Diagram

*3

For Vehicles Without an Auxiliary Battery

*4

For Vehicles with Gasoline Engine

*5

For Vehicles with Front Differential Lock

*6

Refer to Applicable Wiring Diagram

*7

From July 2020

*8

For Vehicles with Hybrid Drive
