Engine/Motor Control Module

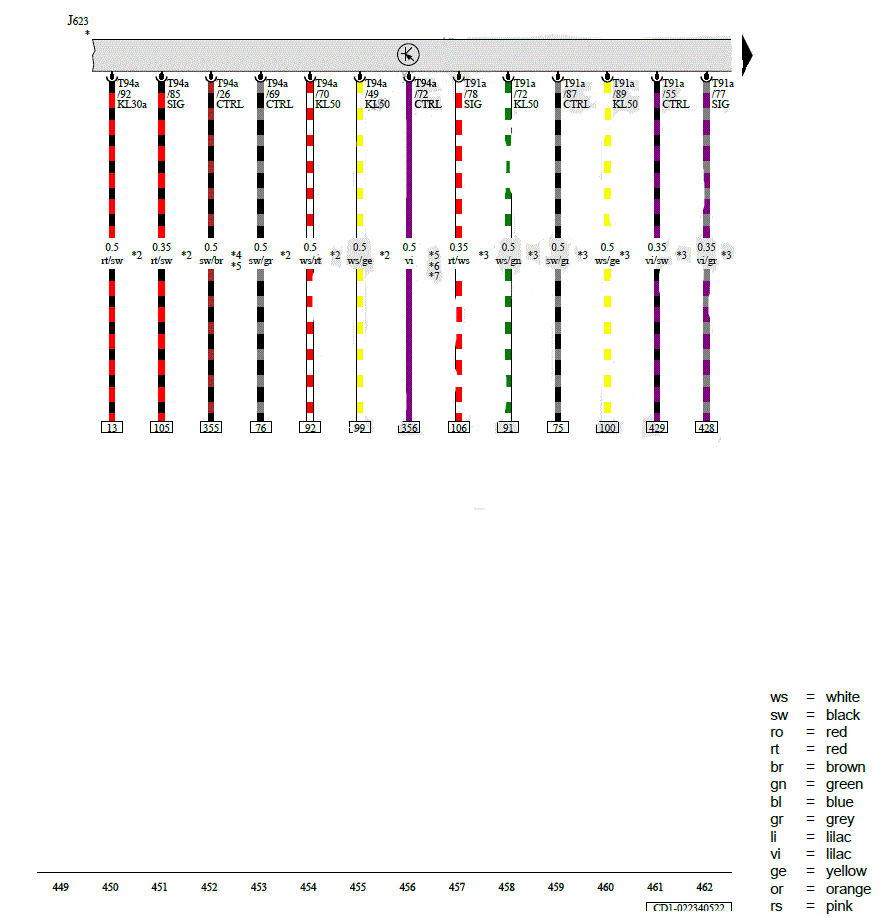

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

T91a

91-Pin Connector, Black

T94a

94-Pin Connector, Black

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with Gasoline Engine

*3

For Vehicles with Diesel Engine

*4

For Natural Gas Vehicles

*5

From July 2020

*6

For Vehicles with a 1.6L Engine

*7

For Vehicles with 2.0L Gasoline Engine

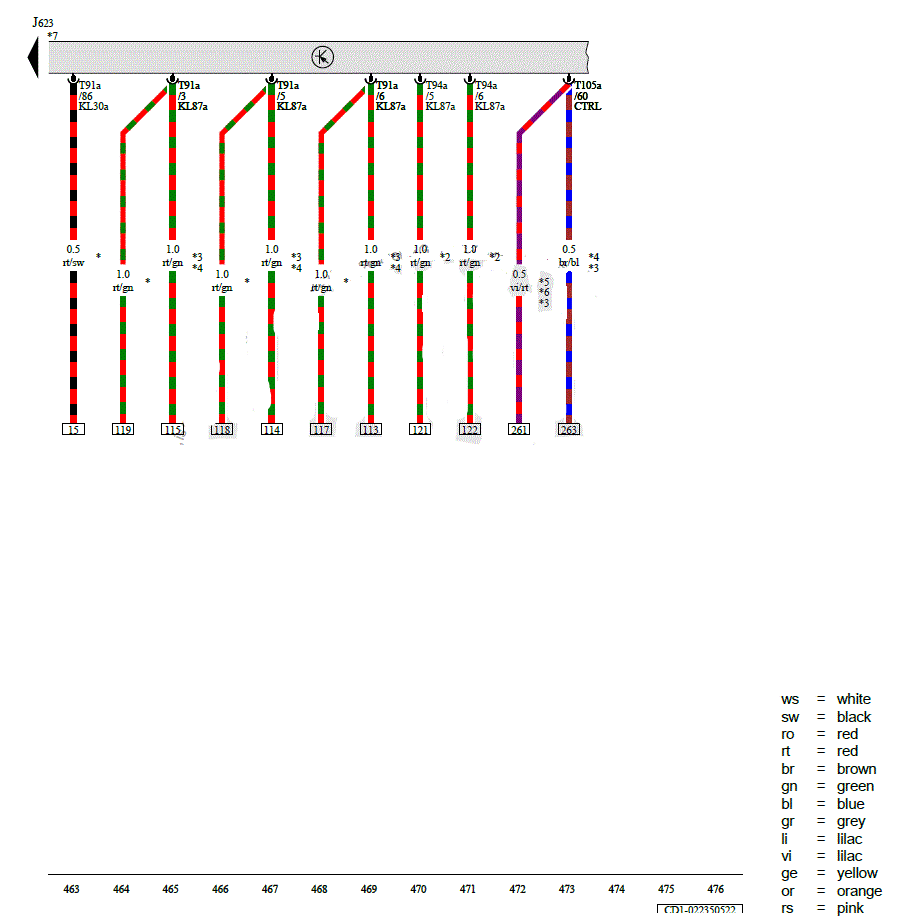

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

T91a

91-Pin Connector, Black

T94a

94-Pin Connector, Black

T105a

105-Pin Connector, Black

*

For Vehicles with Diesel Engine

*2

For Vehicles with Gasoline Engine

*3

For Vehicles with 2.0L Gasoline Engine

*4

From July 2020

*5

For USA Only

*6

From July 2021

*7

Refer to Applicable Engine Wiring Diagram
