Overview - Windshield Projection (Head-Up Display)

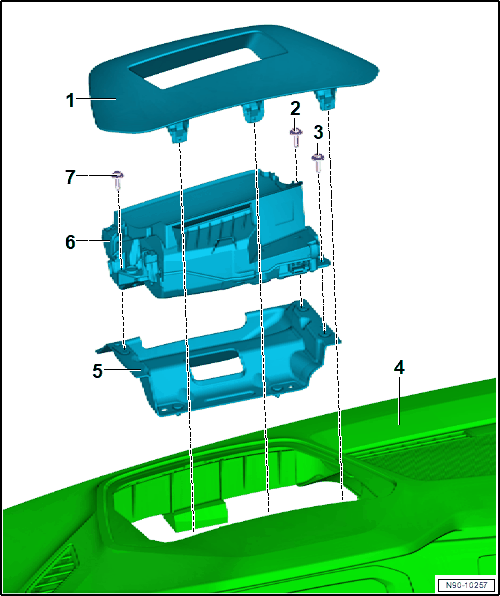

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Upper Cover
   • Removing and Installing. Refer to OVERVIEW - INSTRUMENT PANEL
2. Bolt
   • 4 Nm
3. Bolt
   • 4 Nm
4. Instrument Panel
5. Windshield Projection Bracket (Head Up Display)
   • For windshield projection control module
6. Windshield Projection Head Up Display Control Module -J898-
   • Removing and Installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
7. Bolt
   • 4 Nm
