Window Guide, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

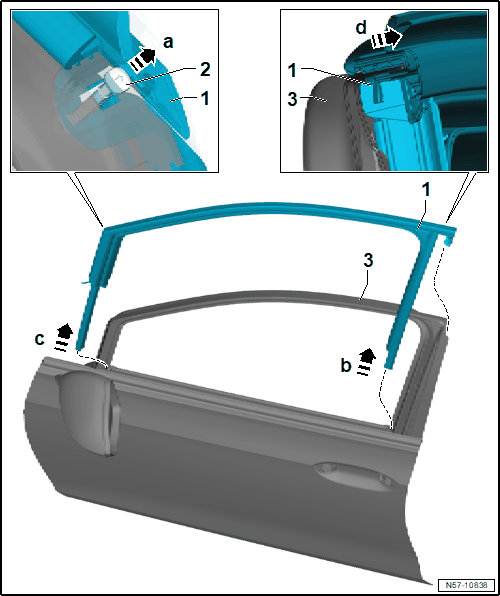

-- Remove the securing pin -2- -arrow a-.

-- Roll the sealing lip on the window guide -1- from the inside off the door flange -3- -arrow d- well.

-- Remove the window guide -1- from the door mounts -arrow b- and -arrow c-.

-- Remove the window guide -1- from the door flange -3- evenly all around.
