Front Center Armrest, Removing And Installing: Removing

• Front seats in the forward most seat position

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

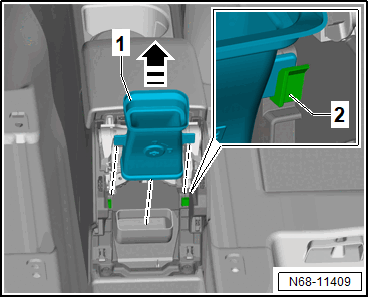

-- Remove the air duct -1- from the guide -2- in -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

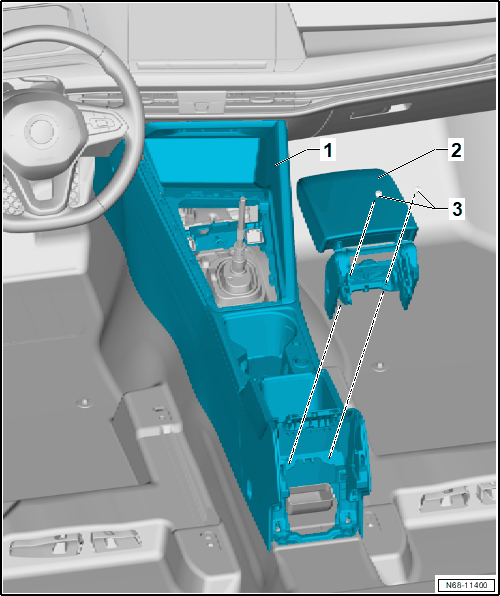

-- Remove the bolts -3-.

-- Remove the front center armrest -2- upward from the center console -1-.
