Screen Separator Mount, Removing And Installing: Removing

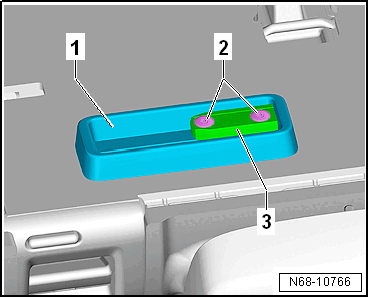

GWWN68-10766Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screen separator. Refer to SCREEN SEPARATOR, REMOVING AND INSTALLING .

-- Remove the bolts -2-.

-- Remove the insert -3- and mount -1- from the right 2/3 rear seat backrest.
