Screen Separator Bracket, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, WAGON .

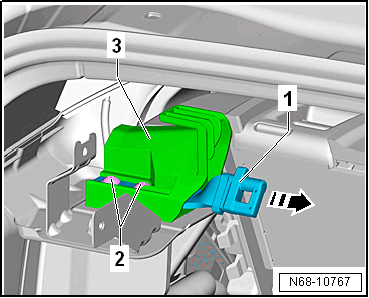

-- Pull the seat belt webbing to the side and remove the bolts -2-.

-- Pull the screen separator bracket -1- out of the seat belt guide -3- -arrow- and remove it.
