Component Location Overview - Components In Front Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

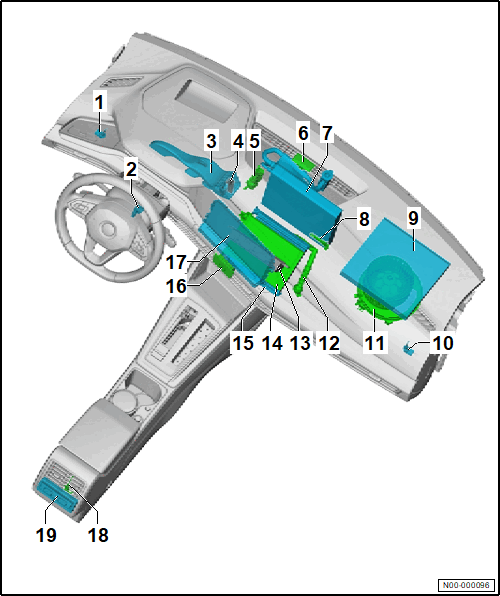

1. Left Vent Temperature Sensor -G150-
   • Refer to Left Vent Temperature Sensor G150, Removing and Installing  .
2. Vehicle Interior Temperature Sensor -G1090-
   • Refer to Vehicle Interior Temperature Sensor -G1090-, REMOVING AND INSTALLING  .
3. Driver Side Footwell Vent
   • Refer to Overview - Air Routing and Air Distribution in Vehicle Interior  .
   • Refer to Driver Side Footwell Vent, Removing and Installing  .
4. Footwell Vent Temperature Sensor -G192-
   • Refer to Footwell Vent Temperature Sensor -G192- REMOVING AND INSTALLING  .
5. Actuator
   • Example for all actuators
   • Refer to Overview - Front Actuators  .
6. Sunlight Photo Sensor -G107-
   • Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING  .
7. Evaporator
   • Refer to Overview - Evaporator Housing  .
   • Refer to Evaporator, Removing and Installing  .
8. Evaporator Temperature Sensor -G308-
   • Refer to Evaporator Temperature Sensor G308, Removing and Installing  .
9. Dust and Pollen Filter
   • Refer to Dust and Pollen Filter, Removing and Installing  .
10. Right Vent Temperature Sensor -G151-
    • Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING  .
11. Fresh Air Blower -V2-
    • RHD: is a mirror image
    • Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING  .
12. Condensation Water Drain
    • Refer to Condensation Water Drain, Checking  .
    • Refer to Condensation Water Drain, Removing and Installing  .
13. Heating and Air Conditioning Control Module -J979-
    • Refer to Heating and Air Conditioning Control Module J979, Removing and Installing  .
14. Auxiliary Heater Heating Element -Z35-
    • Refer to Auxiliary Heater Heating Element Z35, Removing and Installing  .
15. Heater Core
    • Refer to Heater Core, Removing and Installing  .
16. Switch Module in Instrument Panel, Center -EX22-
    • Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
17. Front Information Display Control Head -J685-
    • Refer to FRONT INFORMATION DISPLAY CONTROL HEAD -J685-, REMOVING AND INSTALLING .
18. Rear Vent Temperature Sensor -G174-
    • Depending on equipment/version
    • Refer to Rear Vent Temperature Sensor G174, Removing and Installing  .
19. Rear A/C Display Control Head -E265-
    • Depending on equipment/version
    • Refer to Rear A/C Display Control Head E265, Removing and Installing  .
