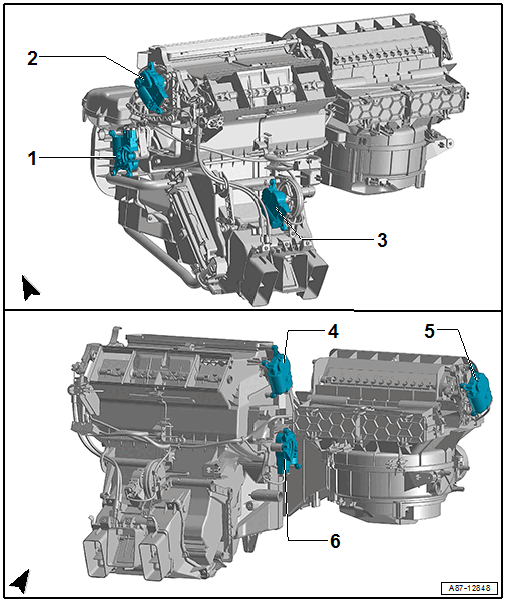

Component Location Overview - Front Actuators
- Actuator for Left Front Temperature Control Door -VX34-
- With Left Temperature Control Door Motor -V158-
- With the Left Temperature Control Door Position Sensor -G220-
- Refer to Overview - Front Actuators .
- Refer to ACTUATOR FOR Left Front Temperature Control Door -VX34-, REMOVING AND INSTALLING .
- Motor for the Air Distribution Door -VX33-
- with Front Air Distribution Door Motor -V426-
- With the Front Air Distribution Door Motor Position Sensor -G642-
- Refer to Overview - Front Actuators .
- Refer to ACTUATOR FOR Air Distribution Door -VX33-, REMOVING AND INSTALLING .
- Actuator for Rear Temperature Control Door -VX95-
- With Rear Temperature Control Door Motor -V137-
- With the Rear Temperature Control Door Motor Position Sensor -G479-
- Depending on equipment/version
- Refer to Overview - Front Actuators .
- Refer to ACTUATOR FOR Rear Temperature Control Door -VX95-, REMOVING AND INSTALLING .
- Actuator for Defroster Door -VX47-
- With Defroster Door Motor -V107-
- With the Defroster Door Motor Position Sensor -G135-
- Refer to Overview - Front Actuators .
- Refer to ACTUATOR FOR Defroster Door -VX47-, REMOVING AND INSTALLING .
- Actuator for Fresh and Air Recirculation Door -VX96-
- With Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
- With the Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
- RHD: is a mirror image
- Refer to Overview - Front Actuators .
- Refer to ACTUATOR FOR Fresh and Air Recirculation Door -VX96-, REMOVING AND INSTALLING .
- Actuator for Right Front Temperature Control Door -VX35-
- With Right Temperature Control Door Motor -V159-
- With Right Temperature Control Door Position Sensor -G221-
- Refer to Overview - Front Actuators .
- Refer to ACTUATOR FOR Right Front Temperature Control Door -VX35-, REMOVING AND INSTALLING .
