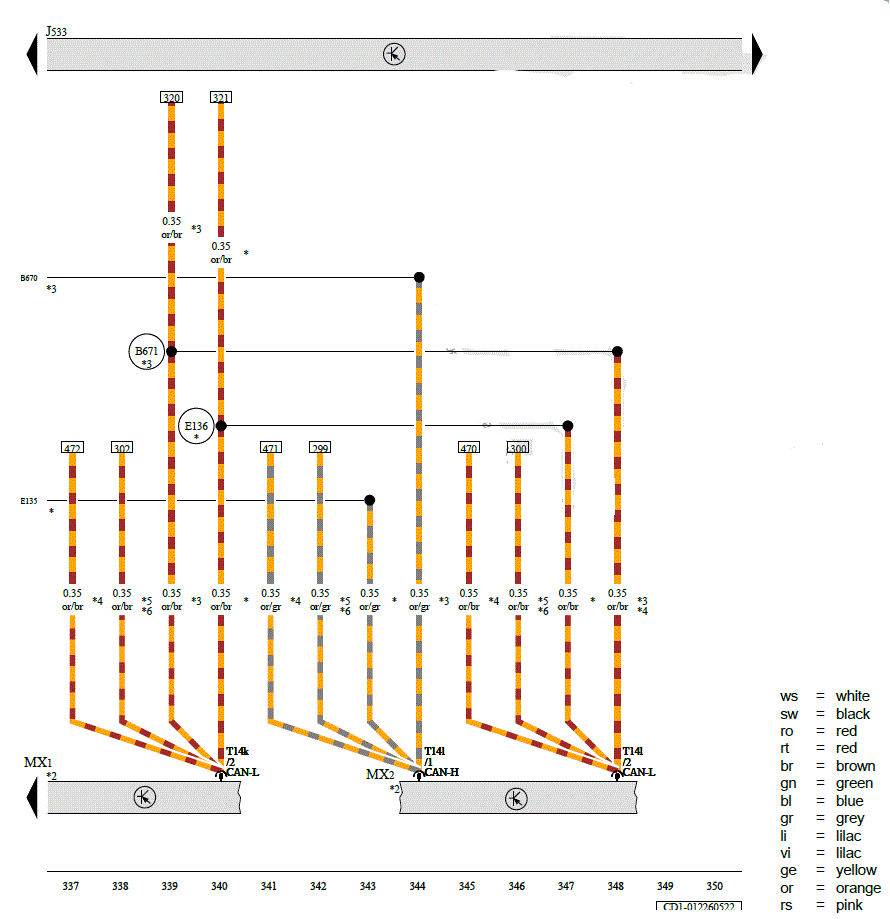

Data Bus on Board Diagnostic Interface, Left Front Headlamp, Right Front Headlamp
J533
Data Bus on Board Diagnostic Interface
MX1
Left Front Headlamp
MX2
Right Front Headlamp
T14k
14-Pin Connector, Black
T14l
14-Pin Connector, Black
B670
CAN Bus Extended High Connection 3 (in Main Wiring Harness)
B671
CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
E135
CAN Bus Extended High Connection (in Engine/Motor Compartment Wiring Harness)
E136
CAN Bus Extended Low Connection (in Engine/Motor Compartment Wiring Harness)
*
For Vehicles with a Manual Transmission
*2
Refer to Applicable Wiring Diagram for Headlamps
*3
For Vehicles with Automatic Transmission (DSG)
*4
For Vehicles with Access/Start Authorization System
*5
For RHD Vehicles
*6
From July 2020
