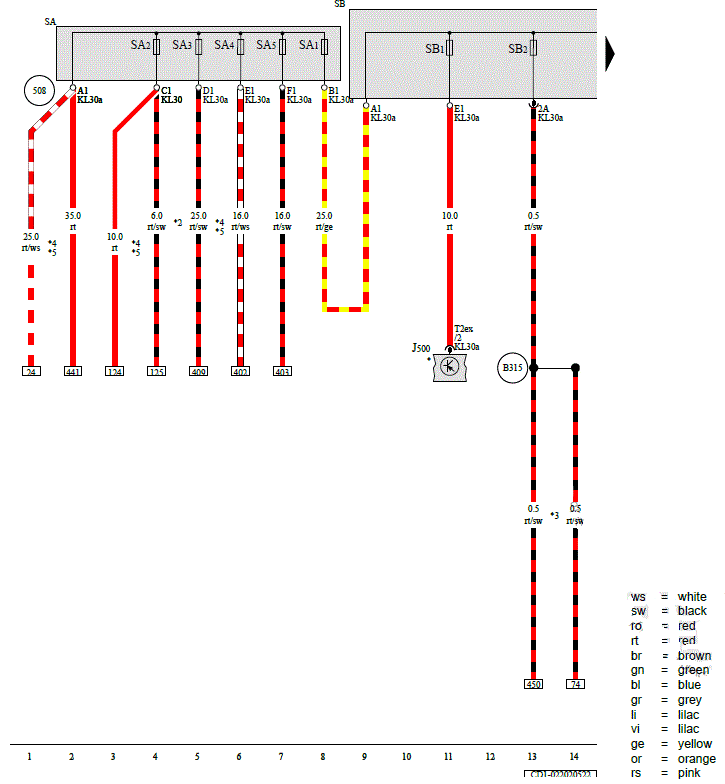

Power Steering Control Module, Fuse Panel A, Fuse Panel B
J500
Power Steering Control Module
SA
Fuse Panel A
SA1
Fuse 1 (On Fuse Panel A)
SA2
Fuse 2 (On Fuse Panel A)
SA4
Fuse 4 (On Fuse Panel A)
SA5
Fuse 5 (On Fuse Panel A)
SB
Fuse Panel B
SB1
Fuse 1 (On Fuse Panel B)
SB2
Fuse 2 (On Fuse Panel B)
SA3
Fuse 3 (On Fuse Panel A)
T2ex
2-Pin Connector, Black
508
Terminal 30 Threaded Connection (On E-Box)
B315
Positive Connection 1 (30a) (in Main Wiring Harness)
*
Refer to the Applicable Wiring Diagram for Electromechanical Power Steering
*2
For Vehicles Without Hybrid Drive
*3
For Vehicles with Gasoline Engine
*4
For Vehicles with Hybrid Drive
*5
From July 2020
