01-23-04 - Update Programming, DTC P2407 Stored In Engine/Motor Control Module -J623- (GROUP 01, NO. 23-04)

WARNING: This page is about the GTI 40th Anniversary Edition, Automatic DCT Trans, which is a different variant/trim than selected.

Publication date: 2023-05-24
Reference number: GROUP 01, NO. 23-04
Supersedes refnos: 2069630, 2069630/1, 2069630/2

01-23-04 - UPDATE PROGRAMMING, DTC P2407 STORED IN ENGINE/MOTOR CONTROL MODULE -J623-

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 23-04 (2069630/2), Date of Issue: May 24, 2023

VOLKSWAGEN:	2022-2023 GTI; 2022 Golf R
GROUP:	01 - On-Board Diagnostic

CONDITION

APPLICABLE VEHICLES

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
GTI	2022 - 2023	2.0T (DRNA)	All	CD_NW000001	CD_PW163559
Golf R	2022	2.0T (DSFE/DSFF)	All	CD_NW000001	CD_NW999999

REVISION TABLE

Instance Number	Published Date	Version Number	Reason For Update
2069630/2	05/24/2023	01-23-04	Include model year 2022 Golf R and DTC P0456.
2069630/1	03/8/2023	01-23-04	Original publication.

NOTE: If software updates or flash campaign/actions are performed on a vehicle, a charger with at least 70A charging current MUST be used in order to avoid problems during software updates and flash campaign/actions.

One or more of the following fault codes may be stored in the Engine Control Module (ECM) Fault Memory:

DTC DESCRIPTION

DTC	Description
P2407	Evaporative Emission System Leak Detection Pump Sense Circuit Intermittent/Erratic
P0326	Knock Sensor 1 Circuit Range/Performance
P0442	EVAP Emission Contr.Sys.(Small Leak) Leak Detected
P0456 (Golf R only!)	EVAP Emission Contr.Sys.(very small Leak) Leak Detected

NOTE: DO NOT diagnose or replace components due to the above faults before performing the update function as explained in this bulletin.

TECHNICAL BACKGROUND

Current Engine/Motor Control Module -J623- software may lead to erroneous fault codes stored within the vehicle ECM.

NOTE: Current Engine/Motor Control Module -J623- software may store a P2450 DTC as a P0442 DTC due to calibration of the diagnostic.

PRODUCTION SOLUTION

Improved software implemented into production.

SERVICE

Update-Programming Procedure:

Critical Warning : The Midtronics battery charger must be connected to the vehicle battery for the duration of the programming, to ensure the battery state of charge remains above 12.5 volts during the update process. If the battery drops below 12.5 volts, the programming could fail which may result in damage to the control module. Control modules damaged by inadequate voltage will not be covered under the warranty policy. The technician should verify the vehicle voltage prior to starting the update process, and should monitor the voltage for the duration of the update.

The procedure may cancel itself if the hazard warning lights are not switched ON. The hazard warning lights prevent the system from switching to bus sleep mode during the update.

ODIS-Service tester should be updated to the latest GFF technical version 11.0.0 or higher and SW version 2.47.0 or higher.

WARNING: Radiator Fan(s) may cycle ON high speed during the Update Process! There is a risk that personal injury may result if contact is made with spinning fan blades.
Keep hands and all objects away from Radiator Fan(s) during Update Process!

NOTE: Prior to launching the ODIS Service diagnostic applications and starting control module update process, confirm tester screen saver and power settings in accordance with Diagnostic Device Hardware & Windows® - VHW-20-02 Change Power Options After Windows®10 Upgrade. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure. When using a VAS 6150/X or 6160/X tester in conjunction with a VAS 6154 wireless transmitter head for a flash procedure, connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.
VAS tools must only be used with their power adapters plugged in. Under no circumstances should they be used on battery power alone during the programming procedure.

Tip: To Update-Programming using Software Version Management (SVM), review and follow instructions in Technical Bulletin Instance 2014603 " Software Version Management".

The SVM process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim or action is carried out that is not explicitly stated in the Technical Bulletin.

Update the Engine Control Module using the SVM Unit code as listed in the table below:

SOFTWARE INFORMATION

Model	Engine	Old Software Part No.	Old Software Version	New Software Part No.	New Software Version (or higher)	SVM Unit Code
2022 GTI	2.0T (DRNA)	8Y0906264A	0001	8Y0906264A	0003	4B2E
2023 GTI	2.0T (DRNA)	8Y0906264D	0001	8Y0906264D	0002
2022 Golf R	2.0T (DSFE/DSFF)	5H0906259A	0001	5H0906259A	0003

Tip: The procedure can be found in GFF under Functions/Component Selection, Software Version Management, Adapting Software.

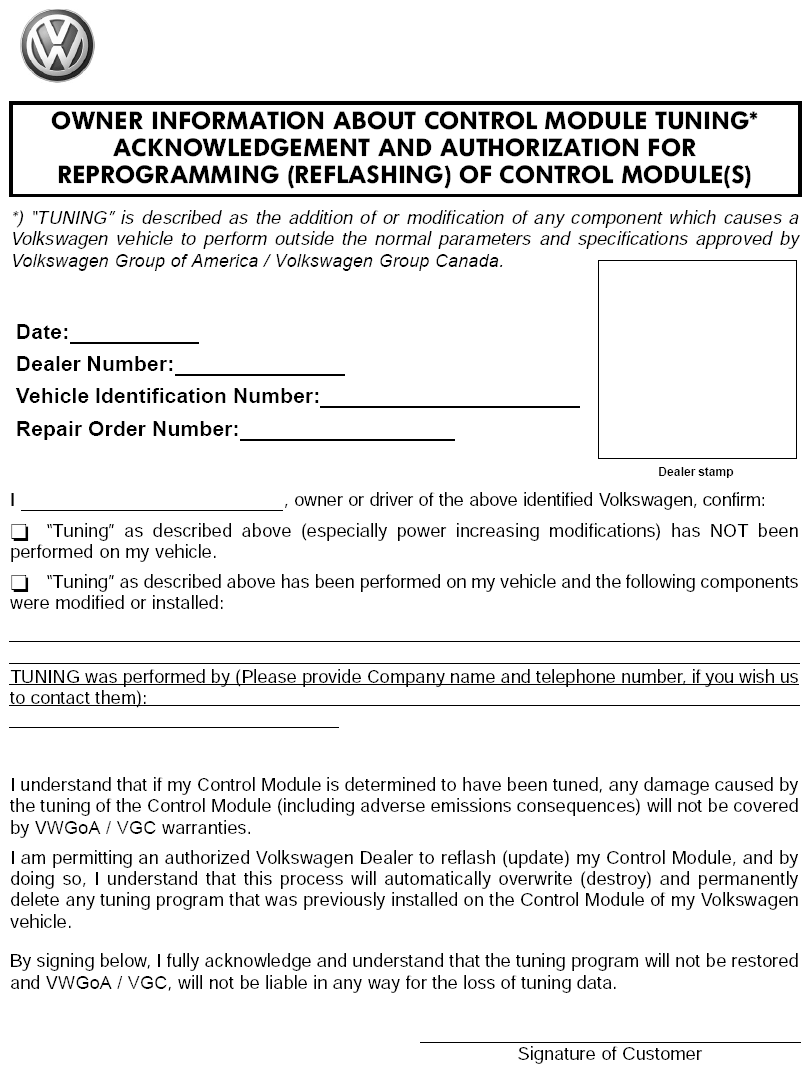

Ensure attached ECM/TCM Tuning Form has been completed and signed by customer as required in SVM Technical Bulletin Instance 2014603.

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

GTI

2022 - 2023

2.0T (DRNA)

All

CD_NW000001

CD_PW163559

Golf R

2022

2.0T (DSFE/DSFF)

All

CD_NW000001

CD_NW999999

SAGA Coding

Claim Type:

Use applicable Claim Type ⁽¹⁾

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

2470

0039

Parts Manufacturer

GTI/Golf R

WWO⁽²⁾

Labor Operation ⁽³⁾ : Charge Battery

27068950 = 10 TU

Labor Operation ⁽³⁾: Update Programming ECM Control Module

24705599 = See GFF expenditure below

Causal Part:

24705599

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = Actual GFF print out (50 TU max)

YES

Road Test

01210004 = see Elsa for latest time units

YES

Technical Diagnosis

01320000 = 00 TU max.

Claim Comment: Input "As per Technical Bulletin 2069630" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only.

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with ELSA updates.

⁽⁴⁾	Documentation required per Warranty Policies and Procedures Manual.

REQUIRED PARTS AND TOOLS

TOOLS INFORMATION

Tool Description	Tool No:
Midtronics Battery Tester/Charger	MTRMSP0702 battery maintainer/charger
VAS Diagnostic Tool	VAS 6150/X & VAS 6160/X and ODIS Service with current online updates

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
