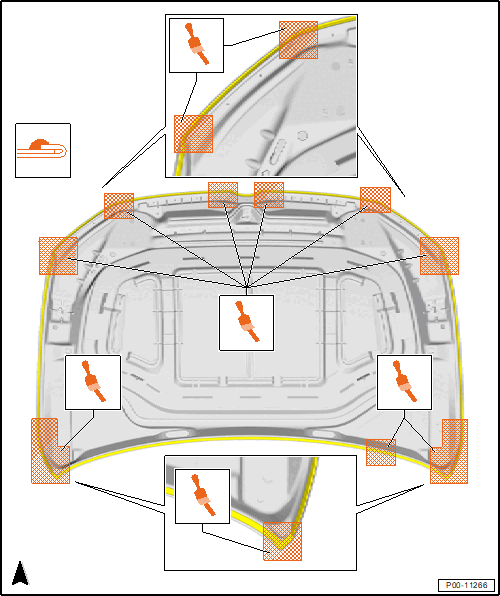

Hood Seam Sealant, Interior View

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-
Fine Seam Sealing
- For fine seam sealing, the projection must be least 3 mm in diameter and a height of 0.5 mm must be ensured.
-
Spreading the Seal
- The designated areas must be coated after the sealant is applied.

NOTE:

Make sure that the protected areas do not become uncovered when spreading the seal seam. A PVC layer that is thick enough must cover the panel.
