Covered Areas, Engine/Motor Compartment

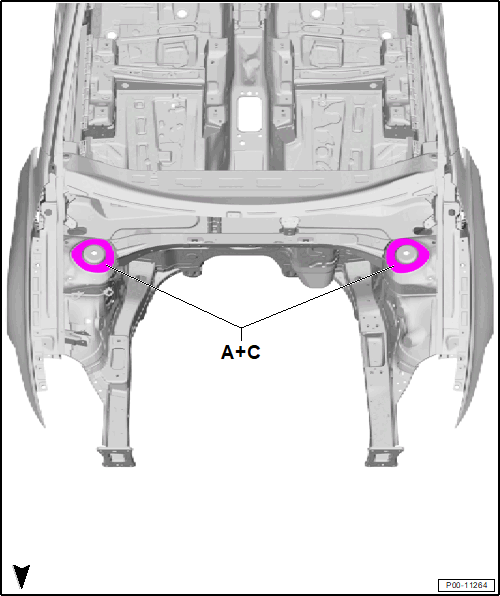

Right/Left Engine/Motor Compartment

GWWP00-11264Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Threads and Contact Surface Free of Sealant and Wax
  2. Threads Free of Cataphoretic Dip Coating (CDC). Filler and Top Coat
