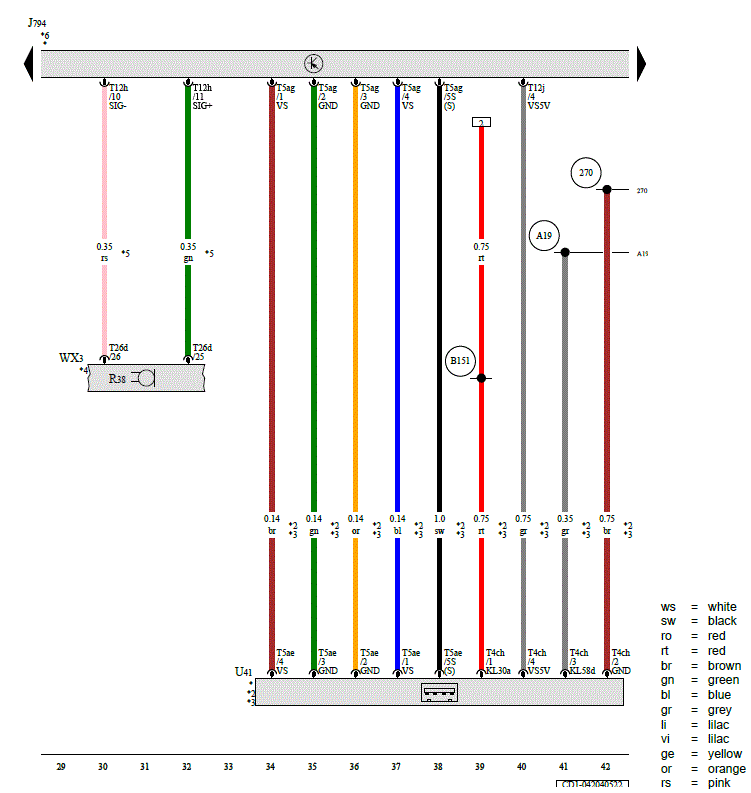

Information Electronics Control Module 1, USB Connection 1, Front Roof Module
J794
Information Electronics Control Module 1
R38
Telephone Microphone
T4ch
4-Pin Connector, Red
T5ae
5-Pin Connector, Green
T5ag
5-Pin Connector, Yellow
T12h
12-Pin Connector, Blue
T12j
12-Pin Connector, Gray
T26d
26-Pin Connector, Black
U41
USB Connection 1
WX3
Front Roof Module
270
Ground Connection (in Telephone Wiring Harness)
A19
Connection 58d (in Instrument Panel Wiring Harness)
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
*
Refer to the Applicable USB Charging Socket Wiring Diagram
*2
Through July 2022
*3
Not for Vehicles with USB Connection for Increased Charging Capacity
*4
Refer to Applicable Wiring Diagram for Interior Lamps
*5
For Vehicles Without Emergency Call Module
*6
Refer to Applicable Sound System Wiring Diagram
