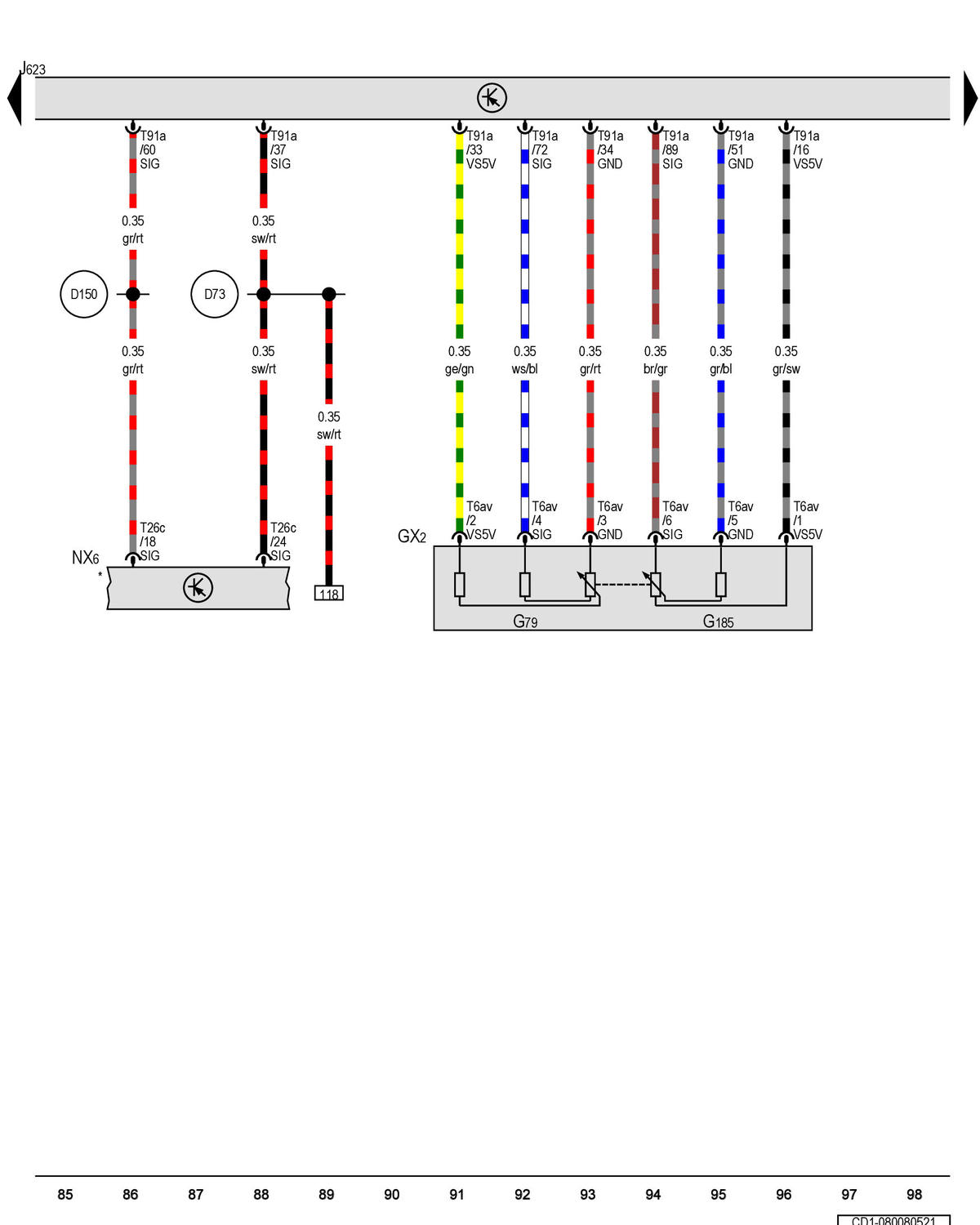

Accelerator Pedal Module, Engine/Motor Control Module, Brake Booster: Notes

GWWCD1-080080521

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
